16. QoS in MC-MLPPP
16.1. Overview
If the user enables the multi-class option under an MLPPP bundle, the XMA or MDA egress data path provides a queue for each of the four classes of MLPPP. The user configures the required number of MLPPP classes to use on a bundle. The forwarding class of the packet, as determined by the ingress QoS classification, is used to determine the MLPPP class for the packet and, therefore, in which of the four egress XMA or MDA queues to store the packet. The mapping of forwarding class to MLPPP class is a function of the user configurable number of MLPPP classes. The default mapping for a 4-class, 3-class, and 2-class MLPPP bundle is described in Table 122.
Table 122: Default Packet Forwarding Class to MLPPP Class Mapping
FC ID | FC Name | Scheduling Priority (Default) | MLPPP Class 4-class bundle | MLPPP Class 3-class bundle | MLPPP Class 2-class bundle |
7 | NC | Expedited | 0 | 0 | 0 |
6 | H1 | Expedited | 0 | 0 | 0 |
5 | EF | Expedited | 1 | 1 | 1 |
4 | H2 | Expedited | 1 | 1 | 1 |
3 | L1 | Non-Expedited | 2 | 2 | 1 |
2 | AF | Non-Expedited | 2 | 2 | 1 |
1 | L2 | Non-Expedited | 3 | 2 | 1 |
0 | BE | Non-Expedited | 3 | 2 | 1 |
Table 123 describes a different mapping enabled when the user applies one of three predefined egress QoS profiles in the 4-class bundle configuration only.
Table 123: Packet Forwarding Class to MLPPP Class Mapping
FC ID | FC Name | Scheduling Priority (Default) | MLPPP Class (MLPPP Egress QoS profile 1, 2, and 3) |
7 | NC | Expedited | 0 |
6 | H1 | Expedited | 0 |
5 | EF | Expedited | 1 |
4 | H2 | Expedited | 2 |
3 | L1 | Non-Expedited | 2 |
2 | AF | Non-Expedited | 2 |
1 | L2 | Non-Expedited | 2 |
0 | BE | Non-Expedited | 3 |
The MLPPP class queue parameters and its scheduling parameters are also configured by applying one of the three predefined egress QoS profiles to an MLPPP bundle.
Table 124 and Figure 52 describe the class queue threshold parameters. Packets marked with a high drop precedence, such as out-of-profile, by the service or network ingress QoS policy will be discarded when any class queue reaches the OOP threshold. Packet with a low drop precedence marking, such as in-profile, will be discarded when any class queue reaches the max threshold.
Table 124: MLPPP Class Queue Threshold Parameters
Class 0 | Class 1 | Class 2 | Class 3 | |||||
Queue Threshold (in ms @ Available bundle rate) | Max | OOP | Max | OOP | Max | OOP | Max | OOP |
2-Class Bundle Default Egress QoS Profile | 250 | 125 | 750 | 375 | N/A | N/A | N/A | N/A |
3-Class Bundle Default Egress QoS Profile | 50 | 25 | 200 | 100 | 750 | 375 | N/A | N/A |
4-Class Bundle Default Egress QoS Profile | 10 | 5 | 50 | 25 | 150 | 75 | 750 | 375 |
4-Class Bundle Egress QoS Profile 1 | 25 | 12 | 5 | 3 | 200 | 100 | 1000 | 500 |
4-Class Bundle Egress QoS Profile 2 | 25 | 12 | 5 | 3 | 200 | 100 | 1000 | 500 |
4-Class Bundle Egress QoS Profile 3 | 25 | 12 | 5 | 3 | 200 | 100 | 1000 | 500 |

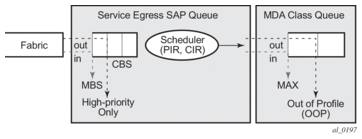

Figure 52: MLPPP Class Queue Thresholds for In-Profile and Out-of-Profile Packets
Table 125 and Figure 53 describe the class queue scheduling parameters.
Table 125: MLPPP Class Queue Scheduling Parameters
WRR Parameters | ||||
4-class MLPPP Egress QoS Profile | MIR | W1 | W2 | W3 |
Profile 1 | 85% | <1% | 66% | 33% |
Profile 2 | 90% | <1% | 89% | 10% |
Profile 3 | 85% | <1% | 87% | 12% |

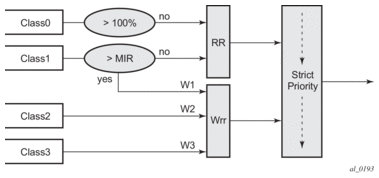

Figure 53: MLPPP Class Queue Scheduling Scheme
All queue threshold and queue scheduling parameters are adjusted to the available bundle rate. If a member link goes down or a new member link is added to the bundle, the scheduling parameters MIR, W1, W2, W3, as well as the per class queue thresholds OOP and Max, are automatically adjusted to maintain the same values.
Class 0 queue is serviced at MLPPP at available bundle rate. Class 1 queue is guaranteed a minimum service rate but is allowed to share additional bandwidth with class 2 and 3 queues based on the configuration of WRR weight W1.
Class 2 and 3 queues can be given bandwidth guarantee by limiting MIR of class 1 queue to less than 100% and by setting the WRR weights W1, W2, and W3 to achieve the desired bandwidth distribution among all three class queues.
There is one queue per bundle member link to carry link control packets, such as LCP: PPP, and which are serviced with strict priority over the 4 class queues (not shown).
In the default 2-class, 3-class, and 4-class egress QoS profile, the class queues are serviced with strict priority in ascending order of class number.
16.2. Ingress MLPPP Class Reassembly
For an MLPPP bundle with the multi-class option enabled, there is a default profile for setting the reassembly timer value for each class. When the predefined MLPPP ingress QoS profile 1 is applied to a 4-class bundle, the values of the timers are modified as described in Table 126.
Table 126: MLPPP Ingress QoS Profile: Reassembly Timers (ms)
Class 0 | Class 1 | Class 2 | Class 4 | |
MLPPP ingress QoS default profile (2-Class bundle) | 25ms | 25ms | NA | NA |
MLPPP ingress QoS default profile (3-Class bundle) | 25ms | 25ms | 25ms | NA |
MLPPP ingress QoS default profile (4-Class bundle) | 25ms | 25ms | 100ms | 1000ms |
MLPPP ingress QoS profile 1 (4-class bundle) | 10 | 10 | 100 | 1000 |
16.3. Basic Configurations
Configure an egress and ingress MLPPP profile.
The following displays the profile configuration examples:
16.3.1. Configuring MC-MLPPP
Use the following CLI syntax to create an MC-MLPPP:
16.3.2. Configuring MC-MLPPP QoS Parameters
A 4-class MLPPP bundle can be configured. This feature cannot be used with MC-MLPPP bundles with fewer than 4 classes.
The following describes the parameters and the configuration processes and rules.
- The user creates an ingress QoS profile, mlppp-profile-ingress, to configure the desired value of the ingress per-class reassembly timer. Ingress QoS profile #1 is reserved to the predefined profile with parameter values in Table 126. The user is allowed to edit this profile and change parameter values. However, the default value of a parameter when a user creates a profile with a profile-id higher than 1, or performs the no option on the parameter, will always be the one in Table 126 for the ingress QoS Profile #1, regardless what parameter value the edited Profile #1 has at that time.
- The user creates an egress QoS profile, mlppp-profile-egress, to configure the desired values for the per-class queue and queue scheduling parameters. The user is also able to configure the mapping of the system forwarding classes to the MLPPP classes. Egress QoS profiles #1, 2, and 3, are reserved to the predefined profiles with parameter values shown in Table 123, Table 124, or Table 125. The user is allowed to edit these profiles and change parameter values. However, the default value of a parameter when a user creates a profile with a profile-id higher than 3, or when the user performs the no option on the parameter, will be the one shown in Table 123, Table 124, or Table 125 for the egress QoS Profile #1. This is regardless of the parameter value the edited profiles have at that time.
- A maximum of 128 ingress QoS profiles and 128 egress QoS profiles can be created on the system.
- The values of the ingress per-class reassembly timer are configured in the ingress QoS profile.
- The mapping of the system forwarding classes to the MLPPP classes are configured in the egress QoS profile. There is a many-to-one relationship between the system FC and an MLPPP class. See Table 123 for the mapping when one of the three predefined 4-class egress QoS profiles is selected.
- The maximum size for each MLPPP class queue in units of ms at the available bundle rate is configured in the egress QoS profile. This is referred to as max in Figure 52 and as max-queue-size in CLI. The out-of-profile threshold for an MLPPP class queue, referred to as oop in Figure 52, is not directly configurable and is set to 50% of the maximum queue size rounded up to the nearest higher integer value.
- The MLPPP class queue scheduling parameters are configured in the egress QoS profile. The minimum information rate, referred to as MIR in Figure 53 and mir in CLI, applies to Class 1 queue only. The MIR parameter value is entered as a percentage of the available bundle rate. The WRR weight, referred to as W1, W2, and W3 in Figure 53 and weight in CLI, applies to class 1, class 2, and class 3 queues. W1 in Figure 53 is not configurable and is internally set to a value of 1 such that Class 1 queue shares 1% of the available bundle rate when the sum of W1, W2, and W3 equals 100. W2 and W3 weights are integer values and are user configurable as percentage Class 2 queue shares and Class 3 queue shares of the available bundle rate.
- The user applies the ingress and egress QoS profiles to a 4-class MLPPP bundle for the configured QoS parameter values to take effect on the bundle.
- The following operations require the bundles associated with a QoS profile to be shutdown to take effect.
- A change of the numbered ingress or egress QoS profile associated with a bundle.
- A change of the bundle associated ingress or egress QoS profile from default profile to a numbered profile and vice-versa.
- The following operations can be performed without shutting down the associated bundles:
- Changes to any parameters in the ingress and egress QoS profiles.
16.4. QoS in MLFR and FRF.12 Fragmentation
The following sections describe MLFR and FRF.12 feature descriptions and implementation.
16.4.1. QoS in MLFR
The MLFR feature introduces the following new QoS requirements on the XM or MDA:
- Four XMA or MDA queues are provided per MLFR bundle to store the fragments of the FR SAP packets; one queue per FR scheduling class. Fragments of all FR SAPs of a given scheduling class will be queued in the same queue.
- The fragments of an FR SAP packet must be queued in the same XMA or MDA queue regardless of which forwarding class queue they use in the IOM.
The FR class queue parameters and its scheduling parameters are configured by applying an Egress QoS profile to an MLFR bundle.
Table 127 and Figure 54 describe the class queue threshold parameters. Packets that are marked with high drop precedence, for example, out-of-profile, by the service or network ingress QoS policy will be discarded when any class queue reaches the OOP threshold. Packets with a low drop precedence marking, for example, in-profile, will be discarded when any class queue reaches the max threshold. Only the max threshold is user configurable and is referred to as max-queue-size in the CLI. The OOP threshold is always set to 50% of the max threshold.
Table 127: Default FR Class Queue Threshold Parameters
Class 0 | Class 1 | Class 2 | Class 3 | |||||
Max | Oop | Max | Oop | Max | Oop | Max | Oop | |
Queue threshold (in ms@available bundle rate) | 10 | 5 | 50 | 25 | 150 | 75 | 750 | 375 |
Figure 54: FR Class Queue Thresholds for In-Profile and Out-of-Profile Packets
Table 128 and Figure 55 describe the class queue scheduling parameters for an MLFR bundle.
Table 128: Default FR Class Queue Scheduling Parameters
WRR Parameters | |||
MIR | W1 | W2 | W3 |
90% | <1% | 89% | 10% |
Figure 55: FR Class Queue Scheduling for an MLFR Bundle
The minimum information rate, referred to as MIR in Figure 55 and MIR in CLI, applies to Class 1 queues only. The MIR parameter value is entered as a percentage of the available bundle rate. The WRR weight, referred to as W1, W2, and W3 in Table 128 and weight in CLI, applies to class 1, class 2, and class 3 queues. W1 is not configurable and is internally set to a value of 1 such that Class 1 queue shares 1% of the available bundle rate when the sum of W1, W2, and W3 equals 100. W2 and W3 weights are integer values and are user configurable such that Class 2 queue shares W2/(W1+W2+W3) and Class 3 queue shares W3/(W1+W2+W3) of the available bundle rate.
All queue threshold and queue scheduling parameters are adjusted to the available bundle rate. If a member link goes down or a new member link is added to the bundle, the scheduling parameters MIR, W1, W2, W3, as well as the per class queue thresholds OOP and max are automatically adjusted to maintain the same values.
In addition, the user can configure the value of the FR scheduling class ingress reassembly timeout for an MLFR bundle. The default values of the timers are shown in Table 129.
Table 129: Default FR Ingress QoS Profile: Reassembly Timers (ms)
Class 0 | Class 1 | Class 2 | Class 3 |
10 | 10 | 100 | 100 |
The following operations require the bundles or links associated with a QoS profile to be shutdown to take effect.
- A change of the numbered ingress or egress QoS profile.
The following operations can be performed without shutting down the associated bundles or links:
- Changes of parameters in the currently assigned ingress and egress QoS profiles.
16.4.2. QoS in FRF.12 End-to-End Fragmentation
When end-to-end fragmentation is enabled on an FR SAP, the queuing and scheduling on the XMA or MDA is reusing the existing FR SAP high- and low-priority queues, as shown in Figure 56.

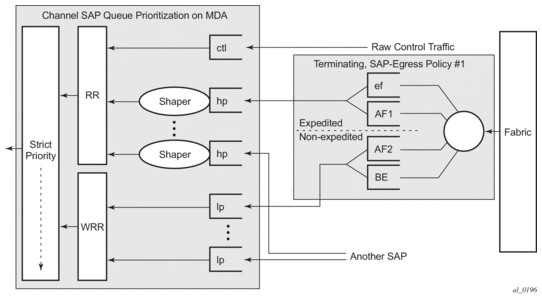

Figure 56: DLC Egress Channel Queue Scheduling
Some minor modifications are introduced to accommodate end-to-end FRF.12 fragments. The user-configured FR scheduling class for this SAP will dictate which of the FR SAP XMA or MDA queues should be used to queue the fragments. Classes 0 and 1 map all fragments of the FR SAP to the high-priority SAP queue. Classes 2 and 3 map all fragments of the FR SAP to the low-priority SAP queue.
The scheduling parameters of these queues have to be modified from existing ones as follows:
- Hi priority (HP) SAP queue: SAP_HP_Q_PIR= Sum{all SAP_FC_Q_PIR}
- Low priority (LP) SAP queue: SAP_LP_Q_WRR_Weight = Sum{all SAP_FC_Q_CIR}
