6. Segment Routing Policies

The concept of a Segment Routing (SR) policy is described by the IETF draft draft-filsfils-spring-segment-routing-policy. A segment-routing policy specifies a source-routed path from a head-end router to a network endpoint, and the traffic flows that are steered to that source-routed path. A segment-routing policy intended for use by a particular head-end router can be statically configured on that router or advertised to it in the form of a BGP route.

The following terms are important to understanding the structure of a segment routing policy and the relationship between one policy and another.

  1. Segment-routing policy — a policy identified by the tuple of (head-end router, endpoint and color). Each segment routing policy is associated with a set of one or more candidate paths, one of which is selected to implement the segment routing policy and installed in the dataplane. Certain properties of the segment routing policy come from the currently selected path - for example, binding SID, segment list(s), and so on.
  2. Endpoint — the far-end router that is the destination of the source-routed path. The endpoint may be null (all-zero IP address) if no specific far-end router is targeted by the policy.
  3. Color — a property of a segment routing policy that determines the sets of traffic flows that are steered by the policy.
  4. Path — a set of one or more segment lists that are explicitly or statically configured or dynamically signaled. If a path becomes active then traffic matching the segment routing policy is load-balanced across the segment lists of the path in an equal, unequal, or weighted distribution. Each path is associated with:
    1. a protocol origin (BGP or static)
    2. a preference value
    3. a binding SID value
    4. a validation state (valid or invalid)
  5. Binding SID — a SID value that opaquely represents a segment routing policy (or more specifically, its selected path) to upstream routers. BSIDs provide isolation or decoupling between different source-routed domains and improve overall network scalability. Usually, all candidate paths of a segment routing policy are assigned the same BSID.
    These concepts are illustrated by the following example. Suppose there is a network of 7 nodes as shown in Figure 65 and there are two classes of traffic (blue and green) to be transported between node1 and node 7. There is a segment routing policy for the blue traffic between node1 and node7 and another segment routing policy for the green traffic between these same two nodes.
    Figure 65:  Network Example with 2 Segment Routing Policies
    The two segment routing policies that are involved in this example and the associated relationships are depicted in Figure 66.

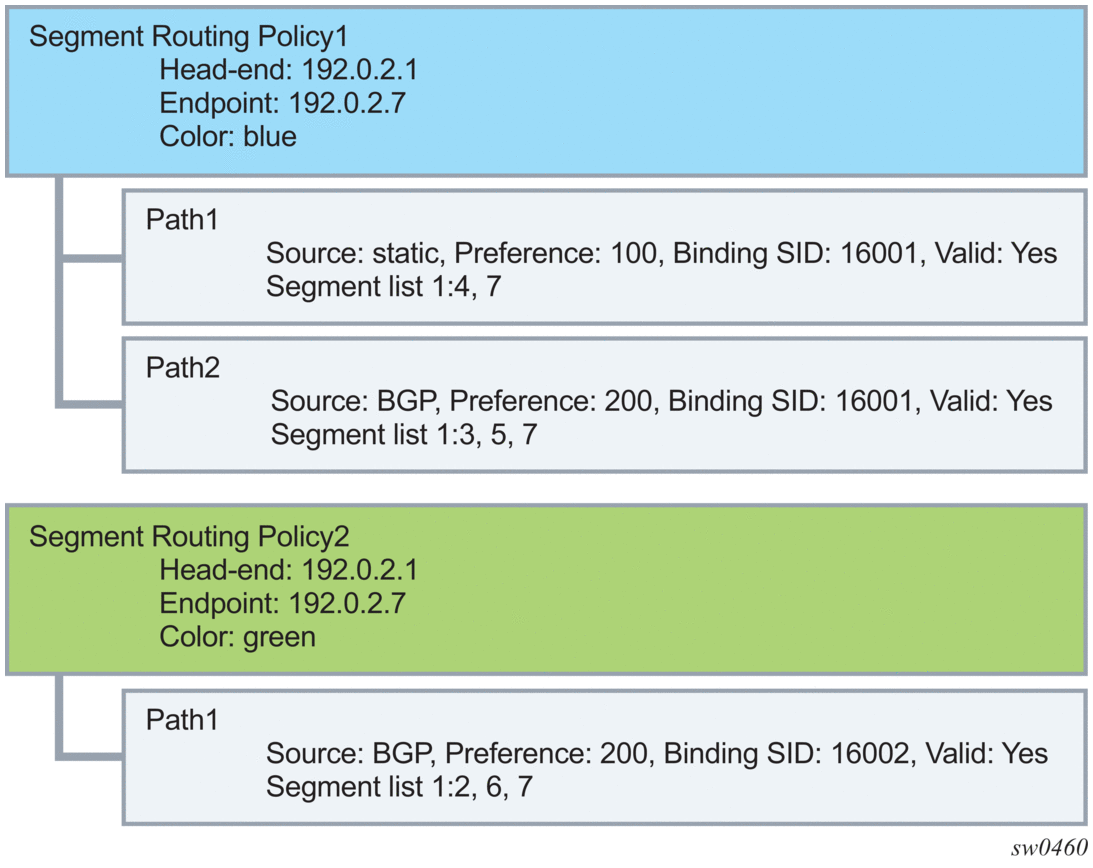

    Figure 66:  Relationship Between Segment Routing Policies and Paths

6.1. Statically-Configured Segment Routing Policies

A segment routing policy is statically configured on the router using one of the supported management interfaces. In the Nokia data model, static policies are configured under config>router>segment-routing>sr-policies.

There are two types of static policies: local and non-local. A static policy is local when its head-end parameter is configured with the value local. This means that the policy is intended for use by the router where the static policy is configured. Local static policies are imported into the local segment routing database for further processing. If the local segment routing database chooses a local static policy as the best path for a particular (color, endpoint) then the associated path and its segment lists will be installed into the tunnel table (for next-hop resolution) and as a BSID-indexed MPLS label entry.

A static policy is non-local when its head-end parameter is set to any IPv4 address (even an IPv4 address that is associated with the local router, which is a configuration that should generally be avoided). A non-local policy is intended for use by a different router than the one where the policy is configured. Non-local policies are not installed in the local segment routing database and do not affect the forwarding state of the router where they are configured. In order to advertise non-local policies to the target router, either directly (over a single BGP session) or indirectly (using other intermediate routers, such as BGP route reflectors), the static non-local policies must be imported into the BGP RIB and then re-advertised as BGP routes. In order to import static non-local policies into BGP, you must configure the sr-policy-import command under config>router>bgp. In order to advertise BGP routes containing segment routing policies, you must add the sr-policy-ipv4 or the sr-policy-ipv6 family to the configuration of a BGP neighbor or group (or the entire base router BGP instance) so that the capability is negotiated with other routers.

Local and non-local static policies have the same configurable attributes. The function and rules associated with each attribute are:

  1. shutdown — used to administratively enable or disable the static policy
  2. binding-sid — used to associate a binding SID with the static policy in the form of an MPLS label in the range 32 to 1048575. This is a mandatory parameter. The binding SID must be an available label in the reserved-label-block associated with segment routing policies, otherwise the policy cannot be activated.
  3. color — used to associate a color with the static policy. This is a mandatory parameter.
  4. distinguisher — used to uniquely identify a non-local static policy when it is a re-advertised as a BGP route. The value is copied into the BGP NLRI field. A unique distinguisher ensures that BGP does not suppress BGP routes for the same (color, endpoint) but targeted to different head-end routers. This is mandatory for non-local policies but optional in local policies.
  5. endpoint — used to identify the endpoint IPv4 or IPv6 address associated with the static policy. A value of 0.0.0.0 or 0::0 is permitted and interpreted as a null endpoint. This is a mandatory parameter.
    Note:

    When a non-local SR policy with either an IPv4 or IPv6 endpoint is selected for advertisement, the head-end parameter supports an IPv4 address only. This is converted into an IPv4-address-specific RT extended community (0x4102) in the advertised route in the BGP Update message.

  6. head-end — used to identify the router that is the targeted node for installing the policy. This is a mandatory parameter. The value local must be used when the target is the local router itself. Otherwise, any valid IPv4 address is allowed, and the policy is considered non-local. When a non-local static policy is re-advertised as a BGP route, the configured head-end address is embedded in an IPv4-address-specific route-target extended community that is automatically added to the BGP route.
  7. preference — used to indicate the degree of preference of the policy if the local segment routing database has other policies (static or BGP) for the same (color, endpoint). In order for a path to be selected as the active path for a (color, endpoint), it must have the highest preference value amongst all the candidate paths.

The following are configuration rules related to the previously described attributes:

  1. Every static local policy must have a unique combination of color, endpoint, and preference.
  2. Every static non-local policy must have a unique distinguisher.

Each static policy (local and non-local) must include, in its configuration, at least one segment-list containing at least one segment. Each static-policy can have up to 32 segment-lists, each containing up to 11 segments. Each segment-list can be assigned a weight to influence the share of traffic that it carries compared to other segment-lists of the same policy. The default weight is 1.

The segment routing policy draft standard allows a segment-list to be configured (and signaled) with a mix of different segment types. When the head-end router attempts to install such a segment routing policy, it must resolve all of the segments into a stack of MPLS labels. In the current SR OS implementation this complexity is avoided by requiring that all (configured and signaled) segments must already be provided in the form of MPLS label values. In terms of the draft standard, this means that only type-1 segments are supported.

6.2. BGP Signaled Segment Routing Policies

The base router BGP instance is configured to send and receive BGP routes containing segment routing policies. In order to exchange routes belonging to the (AFI=1, SAFI=73) or (AFI=2, SAFI=73) address family with a particular base router BGP neighbor, the family configuration that applies to that neighbor must include the sr-policy-ipv4 or the sr-policy-ipv6 keyword respectively.

When BGP receives an sr-policy-ipv4 route (AFI=1, SAFI=73) or a sr-policy-ipv6 route (AFI=2, SAFI=73) from a peer, it runs its standard BGP best path selection algorithm to choose the best path for each NLRI combination of distinguisher, endpoint, and color. If the best path is targeted to this router as head-end, BGP extracts the segment routing policy details into the local segment routing database. A BGP segment routing policy route is deemed to be targeted to this router as the head-end if either:

  1. it has no route-target extended community and a NO-ADVERTISE standard community
  2. it has an IPv4 address-specific route-target extended community with an IPv4 address matching the system IPv4 address of this router

An sr-policy-ipv4 or a sr-policy-ipv6 route can be received from either an IBGP or EBGP peer but it is never propagated to an EBGP peer. An sr-policy-ipv4 or a sr-policy-ipv6 route can be reflected to route reflector clients if this is allowed (a NO_ADVERTISE community is not attached) and the router does not consider itself the head-end of the policy.

Note:

A BGP segment routing policy route is considered malformed, and triggers error-handling procedures such as session reset or treat-as-withdraw, if it does not have at least one segment-list TLV with at least one segment TLV.

6.3. Segment Routing Policy Path Selection and Tie-Breaking

Segment Routing policies (static and BGP) for which the local router is head-end are processed by the local segment routing database. For each (color, endpoint) combination, the database must validate each candidate path and choose one to be the active path. The steps of this process are outlined in Table 33.

Table 33:  Segment Routing Policy Validation and Selection Process

Step

Logic

1

Is the path missing a binding SID in the form of an MPLS label?

Yes: This path is invalid and cannot be used.

No: Go to next step

2

Does the path have any segment-list containing a segment type not equal to 1 (an MPLS label)?

Yes: This path is invalid and cannot be used.

No: Go to next step

3

Are all segment-lists of the path invalid? A segment-list is invalid if it is empty, if the first SID cannot be resolved to a set of one or more next-hops, or if the weight is 0.

Yes: This path is invalid and cannot be used.

No: Go to next step

4

Is the binding-SID an available label in the reserved-label-block range?

Yes: Go to next step.

No: This path is invalid and cannot be used.

5

Is there another path that has reached this step that has a higher preference value?

Yes: This path loses the tie-break and cannot be used.

No: Go to next step.

6

Is there a static path?

Yes: Select the static path as the active path because the protocol-origin value associated with static paths (30) is higher than the protocol-origin value associated with BGP learned paths (20).

No: Go to next step.

7

Is there a BGP path with a lower originator value? The originator is a 160-bit numerical value formed by the concatenation of a 32-bit ASN and a 128-bit peer address (with IPv4 addresses encoded in the lowest 32 bits.)

Yes: This path loses the tie-break and cannot be used.

8

Is there another BGP path with a higher distinguisher value?

Yes: Select the BGP path with the highest distinguisher value.

At step 3 of Table 33, the router attempts to resolve the first segment of each segment-list to a set of one or more next-hops and outgoing labels. It does so by looking for a matching SID in the segment routing module, which must correspond to one of the following:

  1. SR-ISIS or SR-OSPF node SID
  2. SR-IS or SR-OSPF adjacency SID
  3. SR-IS or SR-OSPF adjacency-set SID (parallel or non-parallel set)
Note:

The label value in the first segment of the segment-list is matched against ILM label values that the local router has assigned to node-SIDs, adjacency-SIDs, and adjacency-set SIDs. The matched ILM entry may not program a swap to the same label value encoded in the segment routing policy - for example, in the case of an adjacency SID, or a node-SID reachable through a next-hop using a different SRGB base.

6.4. Resolving BGP Routes to Segment Routing Policy Tunnels

When a statically configured or BGP signaled segment routing policy is selected to be the active path for a (color, endpoint) combination, the corresponding path and its segment lists are programmed into the tunnel table of the router. An IPv4 tunnel of type sr-policy (endpoint parameter is an IPv4 address) is programmed into the IPv4 tunnel table (TTMv4). Similarly, an IPv6 tunnel of type sr-policy (endpoint parameter is an IPv6 address) is programmed into the IPv6 tunnel table (TTMv6). The resulting tunnel entries can be used to resolve the following types of BGP routes:

  1. Unlabeled IPv4 routes
  2. Unlabeled IPv6 routes
  3. Label-unicast IPv4 routes
  4. Label-unicast IPv6 (6PE) routes
  5. VPN IPv4 and IPv6 routes
  6. EVPN routes

Specifically, an IPv4 tunnel of type sr-policy can be used to resolve:

  1. an IPv4 or the IPv4-mapped IPv6 next hop of the following route families:
    ipv4, ipv6, vpn-ipv4, vpn-ipv6, label-ipv4, label-ipv6, evpn
  2. the IPv6 next hop of the following route families:
    ipv6, label-ipv4 and label-ipv6 (SR policy with endpoint=0.0.0.0 only).

An IPv6 tunnel of type sr-policy can be used to resolve:

  1. the IPv6 next hop of the following route families:
    ipv4, ipv6, vpn-ipv4, vpn-ipv6, label-ipv4, label-ipv6, evpn
  2. the IPv4 next hop of the following route families:
    ipv4 and label-ipv4 (SR policy with endpoint=0::0 only).
  3. the IPv4-mapped IPv6 next hop of the following route families:
    label-ipv6 (SR policy with endpoint=0::0 only).

6.4.1. Resolving Unlabeled IPv4 BGP Routes to Segment Routing Policy Tunnels

For an unlabeled IPv4 BGP route to be resolved by an SR policy:

  1. A color-extended community must be attached to the IPv4 route
  2. The base instance BGP next-hop-resolution configuration of shortcut-tunnel>family ipv4 must allow SR policy tunnels

As an example, if under these conditions, there is an IPv4 route with a color-extended community (value C) and BGP next-hop address N. The order of resolution is as follows:

  1. If there is an SR policy in TTMv4 for which end-point = BGP next-hop address and color = Cn, then use this tunnel to resolve the BGP next hop.
  2. If no SR policy is found in the previous step and the Cn color-extended community has its color-only (CO) bits set to '01' or '10', then try to find in TTMv4 an SR policy for which endpoint = null (0.0.0.0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
  3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10', then try to find in TTMv6 an SR policy for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
  4. If no SR policy is found in the previous steps but there is a non-SR policy tunnel in TTMv4 that is allowed by the resolution options and for which endpoint = BGP next-hop address (and for which the admin-tag meets the admin-tag-policy requirements applied to the BGP route, if applicable) then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
  5. Otherwise, fall back to IGP, unless the disallow-igp option is configured.
Note:

Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.

6.4.2. Resolving Unlabeled IPv6 BGP Routes to Segment Routing Policy Tunnels

For an unlabeled IPv6 BGP route to be resolved by an SR policy:

  1. A color-extended community must be attached to the IPv6 route.
  2. The base instance BGP next-hop-resolution configuration of shortcut-tunnel>family ipv6 must allow SR policy tunnels.

As an example, if under these conditions, there is an IPv6 route with a color-extended community (value C) and BGP next-hop address N. The order of resolution is as follows:

  1. If there is an SR policy in TTMv6 for which endpoint = the BGP next-hop address and color = Cn, then use this tunnel to resolve the BGP next hop.
  2. If no SR policy is found in the previous step and the Cn color-extended community has its CO bits set to '01' or '10', then try to find a SR policy in TTMv6 for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
  3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' and there is an SR policy in TTMv4 for which endpoint = null (0.0.0.0) and color = Cn, then use this tunnel to resolve the BGP next hop.
  4. If no SR policy is found in the previous steps but there is a non-SR policy tunnel in TTMv6 that is allowed by the resolution options and for which endpoint = BGP next-hop address (and for which the admin-tag meets the admin-tag-policy requirements applied to the BGP route, if applicable), then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
  5. Otherwise, fall back to IGP, unless the disallow-igp option is configured.
Note:

  1. Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.
  2. For AFI2/SAFI1 routes, an IPv6 explicit null label should be always be pushed at the bottom of the stack if the policy endpoint is IPv4.

6.4.3. Resolving Label-IPv4 BGP Routes to Segment Routing Policy Tunnels

For a label-unicast IPv4 BGP route to be resolved by an SR policy:

  1. A color-extended community must be attached to the label-IPv4 route.
  2. The base instance BGP next-hop-resolution configuration of labeled-routes>transport-tunnel>family label-ipv4 must allow SR policy tunnels.

For example, if under these conditions, there is a label-IPv4 route with a color-extended community (value C) and BGP next-hop address N. The order of resolution is as follows:

  1. If there is an interface route that can resolve the BGP next hop, then use the direct route.
  2. If allow-static is configured and there is a static route that can resolve the BGP next hop, then use the static route.
  3. If there is no interface route or static route available or allowed to resolve the BGP next hop and the next hop is IPv4 then:
    1. Look for an SR policy in TTMv4 for which end-point = BGP next-hop address and color = Cn. If there is such an SR policy then try to use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route is unresolved.
    2. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv4 for which endpoint = null (0.0.0.0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route will be unresolved.
    3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv6 for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route is unresolved.
  4. If there is no interface route or static route that is available or allowed to resolve the BGP next hop and the next hop is IPv6 then:
    1. Look for an SR policy in TTMv6 for which end-point = BGP next-hop address and color = Cn. If there is such an SR policy then try to use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route is unresolved.
    2. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv6 for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route is unresolved.
    3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv4 for which endpoint = null (0.0.0.0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop. If the selected SR policy has any segment-list with more than {11- max-sr-frr-labels under the IGPs} labels or segments, then the label-IPv4 route is unresolved.
  5. If no SR policy is found in the previous steps but there is a non-SR policy tunnel in TTMv4 (next hop is IPv4) or TTMv6 (next hop is IPv6) that is allowed by the resolution options and for which endpoint = BGP next-hop address (and for which the admin-tag meets the admin-tag-policy requirements applied to the BGP route, if applicable), then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
Note:

Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.

6.4.4. Resolving Label-IPv6 BGP Routes to Segment Routing Policy Tunnels

For a label-unicast IPv6 BGP route to be resolved by an SR policy:

  1. A color-extended community must be attached to the label-IPv6 route.
  2. The base instance BGP next-hop-resolution configuration of labeled-routes>transport-tunnel>family label-ipv6 must allow SR policy tunnels.

For example, if under these conditions, there is a label-IPv6 route with a color- extended community (value C) and BGP next-hop address N. The order of resolution is as follows:

  1. If there is an interface route that can resolve the BGP next hop, then use the direct route.
  2. If allow-static is configured and there is a static route that can resolve the BGP next hop, then use the static route.
  3. If there is no interface route or static route available or allowed to resolve the BGP next hop and the next hop is IPv6 then:
    1. Look for an SR policy in TTMv6 for which end-point = BGP next-hop address and color = Cn. If there is such an SR policy then try to use it to resolve the BGP next hop.
    2. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv6 for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
    3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv4 for which endpoint = null (0.0.0.0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
  4. If there is no interface route or static route that is available or allowed to resolve the BGP next hop and the next hop is IPv4-mapped-IPv6 then:
    1. Look for an SR policy in TTMv4 for which end-point = BGP next-hop address and color = Cn. If there is such an SR policy then try to use it to resolve the BGP next hop.
    2. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv4 for which endpoint = null (0.0.0.0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
    3. If no SR policy is found in the previous steps and the Cn color-extended community has its CO bits set to '01' or '10' then try to find an SR policy in TTMv6 for which endpoint = null (0::0) and color = Cn. If there is such a policy, use it to resolve the BGP next hop.
  5. If no SR policy is found in the previous steps but there is a non-SR-policy tunnel in TTMv6 (next hop is IPv6) or in TTMv4 (next hop is IPv4-mapped-IPv6) that is allowed by the resolution options and for which endpoint = BGP next-hop address (and for which the admin-tag meets the admin-tag-policy requirements applied to the BGP route, if applicable) then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
Note:

Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.

6.4.5. Resolving EVPN-MPLS Routes to Segment Routing Policy Tunnels

The next-hop resolution for all EVPN-VXLAN routes and for EVPN-MPLS routes without a color-extended community is unchanged by this feature.

When the resolution options associated with the auto-bind-tunnel configuration of an EVPN-MPLS service (vpls, b-vpls, r-vpls or E-pipe) allow sr-policy tunnels from TTM, then the next-hop resolution of EVPN-MPLS routes (RT-1 per-EVI, RT-2, RT-3 and RT-5) with one or more color-extended communities C1, C2, .. Cn (Cn = highest value) is based on the following rules.

  1. If the next hop is IPv6 and there is an SR policy in TTMv6 for which end-point = BGP next-hop address and color = Cn, then use this tunnel to resolve the BGP next hop.
  2. Otherwise, if the next hop is IPv4 or IPv4-mapped-IPv6 and there is an SR policy in TTMv4 for which end-point = BGP next-hop address (or the IPv4 address extracted from the IPv4-mapped IPv6 BGP next-hop address) and color = Cn, then use this tunnel to resolve the BGP next hop.
  3. If no SR policy is found in the previous steps but there is a non-SR policy tunnel in TTMv4 (next hop is IPv4 or IPv4-mapped-IPv6) or TTMv6 (next hop is IPv6) that is allowed by the resolution options and for which endpoint = BGP next-hop address, then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
Note:

Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.

6.4.6. VPRN Auto-Bind-Tunnel Using Segment Routing Policy Tunnels

When the resolution options associated with the auto-bind-tunnel configuration of VPRN service allow sr-policy tunnels from TTM, next-hop resolution of VPN-IPv4 and VPN-IPv6 routes that are imported into the VPRN and have one or more color-extended communities C1, C2, .. Cn (Cn = highest value) is based on the following rules.

  1. If the next hop is IPv6 and there is an SR policy in TTMv6 for which end-point = BGP next-hop address and color = Cn, then use this tunnel to resolve the BGP next hop.
  2. Otherwise, if the next hop is IPv4 or IPv4-mapped-IPv6 and there is an SR policy in TTMv4 for which end-point = BGP next-hop address (or the IPv4 address extracted from the IPv4-mapped IPv6 BGP next-hop address in the case of VPN-IPv6 routes) and color = Cn, then use this tunnel to resolve the BGP next hop.
  3. If no SR policy is found in the previous step but there is a non-SR policy tunnel in TTMv4 (next hop is IPv4 or IPv4-mapped-IPv6) or TTMv6 (next hop is IPv6) that is allowed by the resolution options and for which endpoint = BGP next-hop address, then use this tunnel to resolve the BGP next hop if it has the highest TTM preference.
Note:

Contrary to section 8.8.2 of draft-filsfils-segment-routing-05, BGP only resolves a route with multiple color-extended communities to an SR policy using the color-extended community with the highest value.

6.5. Seamless BFD and End-to-End Protection for SR Policies

6.5.1. Introduction

This feature reuses of the capabilities of SR-TE LSPs to SR policy, so that operators wishing to use SR policies to enable more flexible and dynamic policy-based routing can benefit from network-based data path monitoring and fast protection switching in case a path failures.

Seamless BFD (S-BFD) is a form of BFD that requires significantly less state and reduces the need for session bootstrapping as compared to LSP BFD. Refer to Seamless Bidirectional Forwarding Detection (S-BFD) in the 7450 ESS, 7750 SR, 7950 XRS, and VSR OAM and Diagnostics Guide. S-BFD requires centralized configuration of a reflector function, as well as a mapping at the head-end node between the remote session discriminator and the IP address for the reflector by each session. This configuration and the mapping are described in the 7450 ESS, 7750 SR, 7950 XRS, and VSR OAM and Diagnostics Guide.

This section describes the application of S-BFD to SR-Polices and the configuration required for this feature. See Seamless BFD for SR-TE LSPs for details of the application of S-BFD to SR-TE LSPs.

S-BFD provides a connectivity check for the data path of a segment list in an SR policy, and can determine whether the segment list is up. In addition, the router also supports two protection modes for an SR policy that are distinguished by the data path programming characteristics and whether uniform failover is required between segment lists in the same SR policy candidate path (ECMP protected mode), or between the programmed candidate paths (linear mode). These protection modes are driven by the S-BFD session state on the programmed segment lists of an SR policy.

6.5.1.1. ECMP Protected Mode

ECMP protected mode programs all segment lists of the top-two candidate paths of an SR policy in the IOM. ECMP protected mode allows establishment of S-BFD on all of those segment lists. All of the segment lists of a specified candidate path are in the same protection group, but different candidate paths are not in the same protection group. Switchover between candidate paths is triggered by the control plane. A segment list is only included in the ECMP set of segment lists if its S-BFD session is up (user traffic is forwarded on a segment list whose S-BFD session is down). See Figure 67.

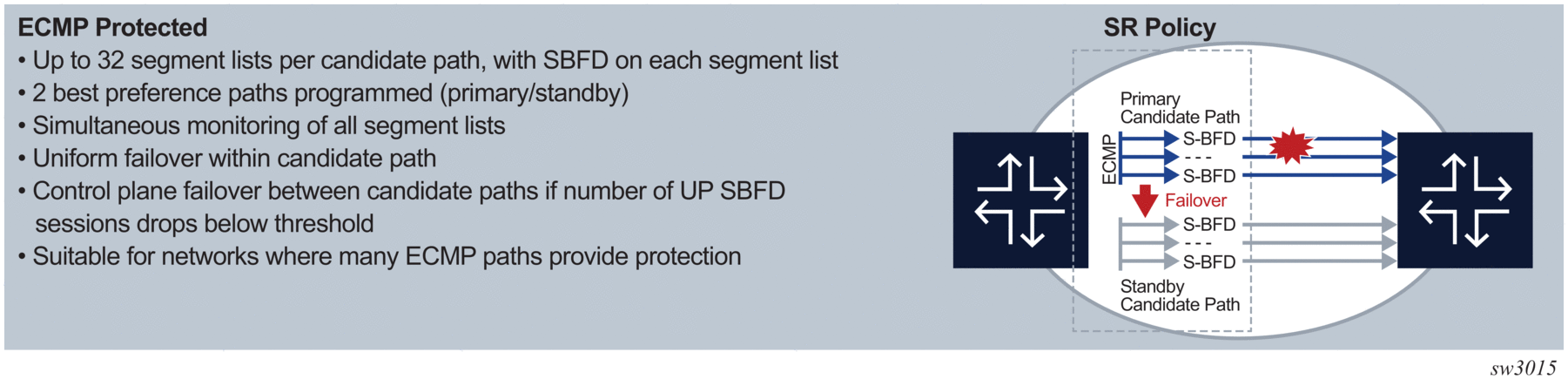

Figure 67:  ECMP Protected SR Policy with S-BFD

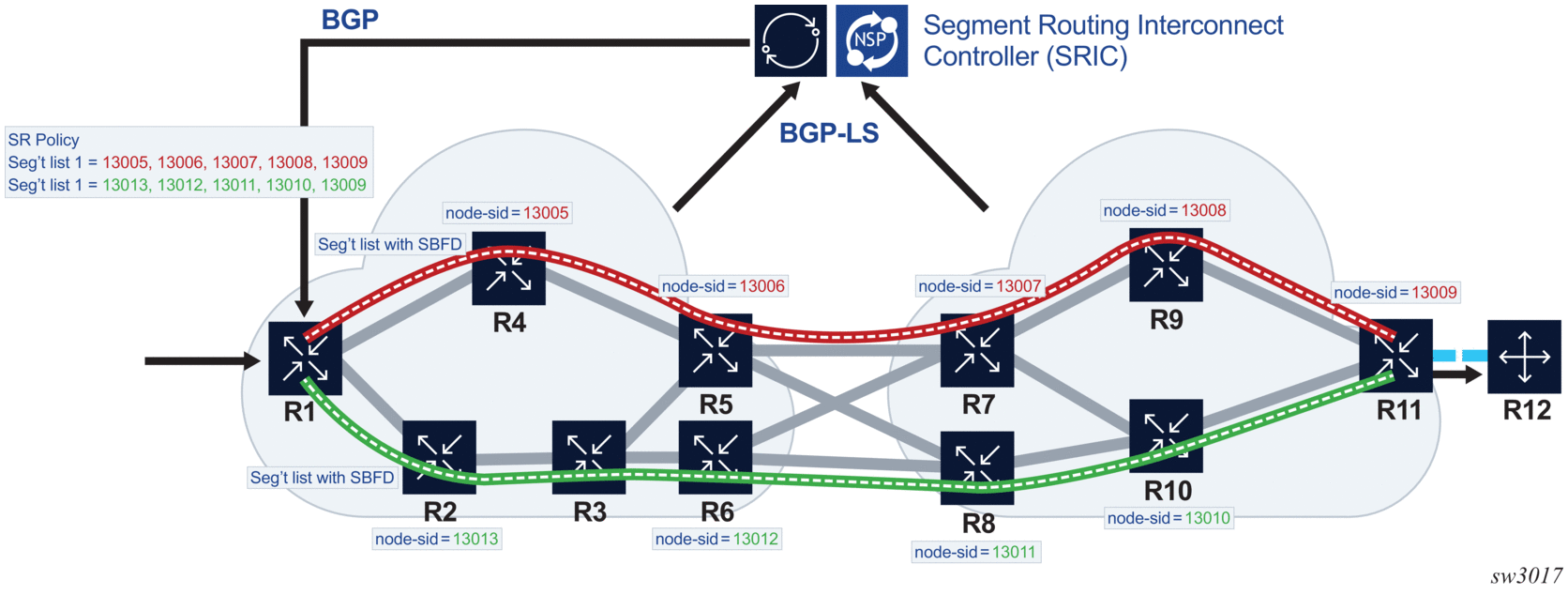

Figure 68 depicts an application for S-BFD on SR policies with ECMP protected mode. Here, an SR policy is programmed at R1 by the Nokia NSP with two segment lists from R1 to R11. One segment list is using R4/R5/R7R9, and the other segment list is using R2/R3/R6/R8 and R10. These segment lists are using diverse paths and traffic that is sprayed across both of them according to the configured hashing algorithm. Separate S-BFD sessions are run on each segment list and allow the rapid detection of data path failures along the whole segment list path. R1 is able to rapidly remove a segment list from the ECMP set if S-BFD goes down, and is also able to failover to a backup SR policy (not shown) (or fall back to a less preferred LSP) if more than a certain number of the S-BFD sessions go down.

Figure 68:  Example Application of ECMP Protected Mode with S-BFD

6.5.1.2. Linear Mode

This mode is termed linear because it is similar in operation to traditional 1-for-1 linear protection switching. It is intended to allow one or more backup paths to protect a primary path, with fast failover between candidate paths. Uniform failover is supported between candidate paths of the same SR policy. Only one segment list from each of the top-three preference candidate paths is programmed in the IOM. All of the programmed candidate paths of a specified SR policy are in the same protection group. See Figure 69.

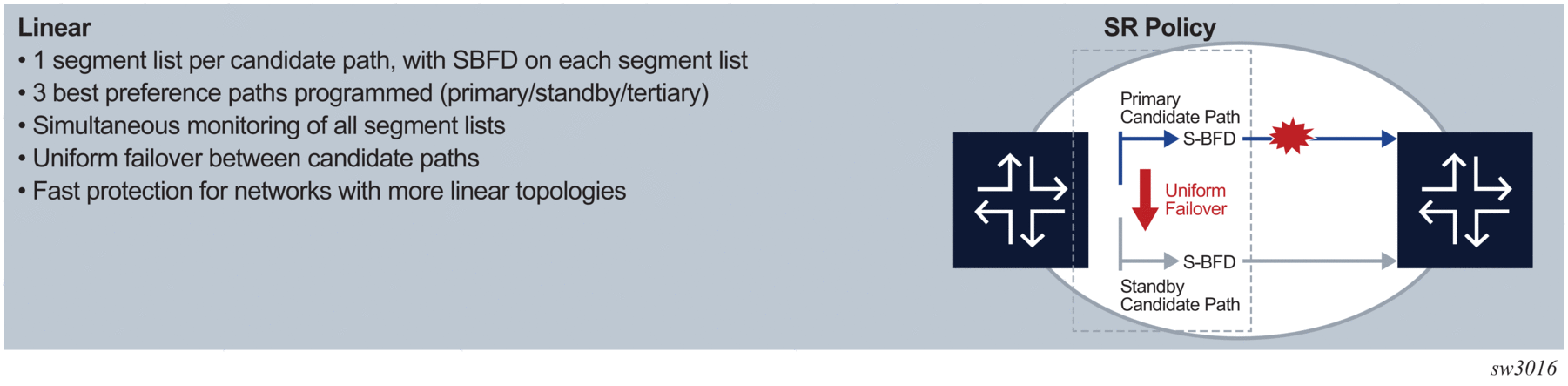

Figure 69:  Linear Protected SR Policy with S-BFD

6.5.2. Detailed Description

This section describes the S-BFD for SR policies, support for primary and backup candidate paths, and configuration steps for S-BFD and protection for SR policies.

6.5.2.1. S-BFD for SR Policies

S-BFD is supported on segment lists for both static SR policies and BGP SR policies by binding a maintenance policy containing an S-BFD configuration to an imported SR policy route or a static SR policy. S-BFD packets are encapsulated on the SR policy segment lists in the same way as for SR-TE LSP paths. As in the case of SR-TE LSPs, the discriminator of the local node as well as a mapping to the far-end reflector node discriminators is first required. BFD sets the remote discriminator at the initiator of the S-BFD session based on a lookup in the S-BFD reflector discriminator using the endpoint address of the SR policy candidate path. A candidate path of an SR policy is only treated as available if the number of up S-BFD sessions equals or exceeds a configurable threshold.

Note:

When an SR policy candidate path is first programmed, a 3 second initialization hold timer is triggered. This allows the establishment of all the S-BFD sessions for all programmed paths before it decides which candidate path to activate among the eligible ones (eligible means number of segment lists with S-BFD sessions in up-state that is higher or equal to a configured threshold).

Since this is set to 3 seconds, it is recommended that the transmit and receive control packet timers are set to no more than 1 second with a maximum multiplier of 3 for S-BFD sessions.

S-BFD control packet timers, that are configurable down to 10ms, are supported for specific SR OS platforms with CPM network processor support.

The router supports an uncontrolled return path for S-BFD packets on SR policies. By default, the BFD reply packet from the reflector node is routed out-of-band to the head end of the SR policy.

6.5.2.2. Support for Primary and Backup Candidate Paths

End-to-end protection of static and BGP SR policies is supported using ECMP-protected or linear mode.

If an SR policy for a specified {headend, color, endpoint} is imported (by BGP) or configured (in the static case) and is selected for use, then the best (highest) preference candidate path is treated as the primary path while the next preference candidate preference policy is treated as the standby path. In linear mode, if a third path is present, then this is treated as a tertiary standby path. All of the valid segment lists for these are programmed in the IOM and made available for forwarding S-BFD packets, subject to a limitation in linear mode of one segment list per candidate path. In ECMP protected mode, the two best preference candidate paths are programmed in the IOM (up to 32 segment lists per path), while in linear mode, the three best preference candidate paths are programmed in the IOM (one segment list per candidate path).

In each case, segment lists of the best preference path are initially programmed as forwarding NHLEs while the others are programmed as non-forwarding. If the maximum number of programmed paths for a specified mode has been reached (for example, two for ECMP protected mode, and three for linear mode), and a consistent new path is received with a better preference than the existing active path, then this new path is only considered if or when the route for one of the current programmed paths is withdrawn or deleted. However, if the maximum number of programmed paths for the mode has not been reached, then the new path is programmed and any configured revert timer is started. The system switches to that better preference path immediately or when the revert timer expires (as applicable).

Failover is supported between the currently active path and the next best preference path if the currently active path is down due to S-BFD. Similar to the case of SR-TE LSPs, by default, if ECMP protected or linear mode is configured, the system switches back to the primary (best preference) SR policy path as soon as it recovers. This can happen when the number of up S-BFD sessions equals or exceeds a threshold and a hold-down timer has expired. However, it is possible to configure a revert timer to control reversion to the primary path.

All candidate paths of an SR policy must have the same binding SID when one of these two modes is applied.

6.5.2.3. Configuration of S-BFD and Protection for SR Policies

S-BFD and protection for SR Policies is configured using the following steps.

  1. Configure an S-BFD reflector and mapping parameters for the remote reflector under the configure>router>bfd>seamless-bfd context.
  2. Configure one or more BFD templates defining the BFD session parameters under the configure>router>bfd context.
  3. Configure protection and BFD parameters that are applied to SR policies in a named maintenance policy under the configure>router>segment-routing context.
  4. For static SR policies, apply a named maintenance policy to the static SR policy under the configure>router>segment-routing>sr-policies>static-policy context.
  5. For dynamic BGP SR policies, configure a policy statement entry to match on a specific route or a set of routes of type sr-policy-ipv4 with an action of accept and applying a named SR maintenance policy to them.

Refer to the 7450 ESS, 7750 SR, 7950 XRS, and VSR OAM and Diagnostics Guide for detailed information on Steps  1 and  2. See Configuration of SR Policy S-BFD and Mode Parameters, Application of S-BFD and Protection Parameters to Static SR-Policies, and Application of S-BFD and Protection Parameters to BGP SR-Policies for details on Steps  3 through  5.

6.5.2.3.1. Configuration of SR Policy S-BFD and Mode Parameters

S-BFD and protection mode parameters are configured in a named maintenance policy. This is applied to SR policy paths that are imported by BGP as a policy statement action or by binding to a static SR policy configuration.

Maintenance policies are configured as follows:

configure>router>segment-routing>
   maintenance-policy <name>
      bfd-enable
      bfd-template <name>
      mode {linear | ecmp-protected}
      threshold <number>
      revert-timer <timer-value>
      hold-down-timer <timer-value>
      no shutdown

The bfd-enable command enables or disables BFD on all of the segment lists of the candidate path that are installed in the data path.

The bfd-template command refers to a named BFD template that must exist on the system.

The mode command specifies how to program the data path and how to behave if the number of BFD sessions that are up is less than the threshold and the hold-down timer has expired. All of the paths in the set must have the same mode (see SR Policy Route and Candidate Path Parameter Consistency). All of the allowed segment lists of the SR policy path are programmed in the IOM. The default mode is none.

In both the linear mode and ecmp-protected modes, if two or more SR policy paths with the same {headend, color, endpoint} have the same mode, then the highest preference path is treated as an effective primary path while the next highest path preference is treated as the standby path. If a third path is present in the linear mode, then this is treated as a tertiary path and also programmed in the IOM.

In the ecmp-protected mode, all the segment lists of the top two best preference paths are programmed it the IOM. However, in linear mode, the lowest index segment list of each of the top three preference paths is programmed in the IOM and linear protection is supported between that set. All of the segment lists of the programmed paths are made available for forwarding S-BFD packets.

If the currently active path becomes unavailable due to S-BFD, the system fails over to the next best preference candidate path that is available. If all programmed candidate paths are unavailable, then the SR policy is marked as down in TTM.

The linear mode supports uniform failover between candidate paths (policy routes) of the same SR policy. If linear mode is configured then the following rules apply.

  1. Only one segment list is allowed per SR policy path. If more than one is configured, then only the lowest index segment list is programmed in the data path.
  2. The top-3 best preference valid SR policy paths belonging to the same SR policy are programmed in the IOM and are assigned to the same protection group. Uniform failover is supported between these paths.

The threshold command configures the minimum number of S-BFD sessions that must be up to consider the SR policy candidate path to be up. If it is below this number, the SR policy candidate path is marked as BFD degraded by the system. The threshold parameter is only valid in the ecmp-protected mode (a threshold of 1 is implicit in the linear mode).

If the revert-timer command is configured, then the router starts a revert timer when the primary path recovers (for example, after the number of S-BFD sessions that are up is ≥ threshold and the hold-down timer has expired) and switches back when the timer expires. If no revert-timer is configured, then the system reverts to the primary path for the policy when it is restored.

If a secondary or tertiary path is currently active, and the revert timer is started (due to recovery of the primary path), but the secondary path subsequently goes down due to the number of up S-BFD sessions being less than the threshold, and no other better preference standby path is available, then the router reverts immediately to the primary path. However, if a better preference standby path is available and up, the revert timer is not canceled and the system switches to the better preference standby path and switches back to the primary path when the revert timer expires. If the hold-down timer is currently active on a better-preference path, then the system immediately switches to the primary path. If the system needs to switch to the primary path but the hold-down timer is still active on the primary path, the system cancels the timer and switches immediately.

The hold-down-timer command is intended to prevent bouncing of the SR policy path state if one or more BFD sessions associated with segment lists flap and cause the threshold to be repeatedly crossed in a short period of time. The hold-down timer is started when the number of S-BFD sessions that are up drops below the threshold. The SR policy path is not considered to be up again until the hold-down timer has expired and the number of S-BFD sessions that are up equals or exceeds the threshold.

A maintenance policy can only be deleted or a value changed if the maintenance policy is administratively disabled (shutdown). A maintenance policy can only be enabled if the bfd-enable, bfd-template and mode commands are configured. All associated SR policy paths are deleted from the IOM if a maintenance template is shutdown.

6.5.2.3.2. Application of S-BFD and Protection Parameters to Static SR-Policies

A named maintenance policy is applied to a static SR policy using the maintenance-policy command as follows:

config router segment-routing sr-policies
         static-policy <name>
            head-end local
            binding-sid <number>
            maintenance-policy <name>
            ...

A maintenance policy can only be configured if the static SR policy head-end is set to local. Policies with an IP address that is not local to the node are not programmed in the SR database and cannot have S-BFD sessions established on them by this node because they are not the head end for the SR policy path.

S-BFD needs an endpoint address for the session so that the S-BFD reflector discriminator can be looked-up as a part of the session addressing. A maintenance policy cannot be configured on an SR policy with a null endpoint.

6.5.2.3.3. Application of S-BFD and Protection Parameters to BGP SR-Policies

S-BFD and protection parameters can be applied to matching imported SR policy routes. Match criteria in the route import policy for the color, endpoint and route distinguisher of a policy enable matching on a specific SR policy route for family sr-policy-v4 and sr-policy-v6 types.

Note:

For routes with the same matching distinguisher, only those with the best criteria are pushed to the SR database.

For example, matching a unique SR policy requires the following fully qualified set of match criteria:

configure router policy-options
   policy-statement <name>
      entry <id>
         from family sr-policy-ipv4
         from distinguisher <rd-value>
         from color <color>
         from endpoint <ip-address>

However, users may only require more general match criteria (for example, to apply the same maintenance template to all imported SR policy IPv4 routes, irrespective of color or endpoint).

An SR policy maintenance template is applied to matching SR policy routes using the sr-maintenance-policy action commands.

configure policy-options
   policy-statement <name>
      entry <id>
         from family sr-policy-ipv4
         ...
         action accept
           sr-maintenance-policy <name>

Maintenance policy statements are applicable as actions on a specific entry or as the default action.

The named SR maintenance policy must exist on the system when the commit is executed for the routing policy. If parameterization of actions is used and the named SR maintenance policy exists, the router still validates.

A change in policy options action deletes all programmed paths for that route and based on the new action, re-downloads applicable routes to the IOM.

6.5.2.3.4. SR Policy Route and Candidate Path Parameter Consistency

An SR policy consists of a set of one or more candidate paths. Each candidate path may be described by an SR policy route, that may be a static SR policy that is configured under the config>router>segment-routing>sr-policies context, or a dynamic route imported by BGP. The router checks the consistency of the following BFD and protection parameters across all of the SR policy routes for a specified SR policy.

    {Maintenance-policy existence}

    bfd-enable
    bfd-template <name>
    mode {linear | ecmp-protected}
    revert-timer <timer-value>

Maintenance-policy existence covers the case where the existing programmed route is an SR policy with no maintenance policy, and the new route has a maintenance policy, and vice-versa.

Consistency is enforced across all of the static SR policy candidate paths and dynamic SR policy routes that make up a segment routing policy. Since SR policy routes or paths are imported sequentially and cannot be considered together, inconsistencies are handled as follows:

First policy route imported/configured:
Check: valid set of parameters
Action: If OK, program in data path and activate

Second policy route imported/configured:
Check: valid set of parameters, consistency with existing activated policy route
Action If OK, program in data path and activate, else hold in CPM but do not program

Third policy route imported/configured:
Check: valid set of parameters, consistency with existing activated policy route (s)
Action If OK, program in data path and activate, else hold in CPM but do not program

Inconsistent policy routes (paths) are only programmed if their parameters are valid and any programmed routes for that SR policy are deleted.

By using the same maintenance policy for all of the SR policy's routes, inconsistencies between the BFD and protection parameters of SR policy routes belonging to a specified SR policy can be avoided.

6.6. Traffic Statistics

SR policies provide the ability to collect statistics for ingress and egress traffic. In both cases, traffic statistics are collected without any forwarding class or QoS distinction.

Traffic statistics collection is enabled as follows:

  1. config>router>segment-routing>sr-policies>ingress-statistics
    Ingress — Ingress traffic collection only applies to binding-sid SR policies as the statistic index is attached to the ILM entry for that label. The traffic statistics provide traffic for all the instances that share the binding SID. The statistic index is released and statistics are lost when ingress traffic statistics are disabled for that binding SID, or the last instance of a policy using that label is removed from the database.
  2. config>router>segment-routing>sr-policies>egress-statistics
    Egress — Egress traffic statistics are collected globally, for all policies at the same time. Both static and signaled policies are subject to traffic statistics collection. Statistic indexes are allocated per segment list, which allows for a fine grain monitoring of traffic evolution. Also, statistic indexes are only allocated at the time the segment list is effectively programmed. However, the system allocates at most 32 statistic indexes across all the instances of a given policy. Therefore, in the case where an instance of a policy is deprogrammed and a more preferred instance is programmed, the system behaves as follows:
    1. If the segment list IDs of the preferred instance are different from any of the segment list IDs of any previously programmed instance, the system allocates new statistic indexes. While that condition holds, the statistics associated with a segment list of an instance strictly reflect the traffic that used that segment list in that instance.
    2. If some of the segment list IDs of the preferred instance are equal to any of the segment list IDs of any previously programmed instance, the system reuses the indexes of the preferred instance and keeps the associated counter value and increment. In this case, the traffic statistics provided per segment list not only reflect the traffic that used that segment list in that instance. It incorporates counter values of at least another segment-list in another instance of that policy.

In all cases, the aggregate values provided across all instances truly reflect traffic over the various instances of the policy.

Statistic indexes are not released at deprogramming time. They are, however, released when all the instances of a policy are removed from the database, or when the egress-statistics command is disabled.
