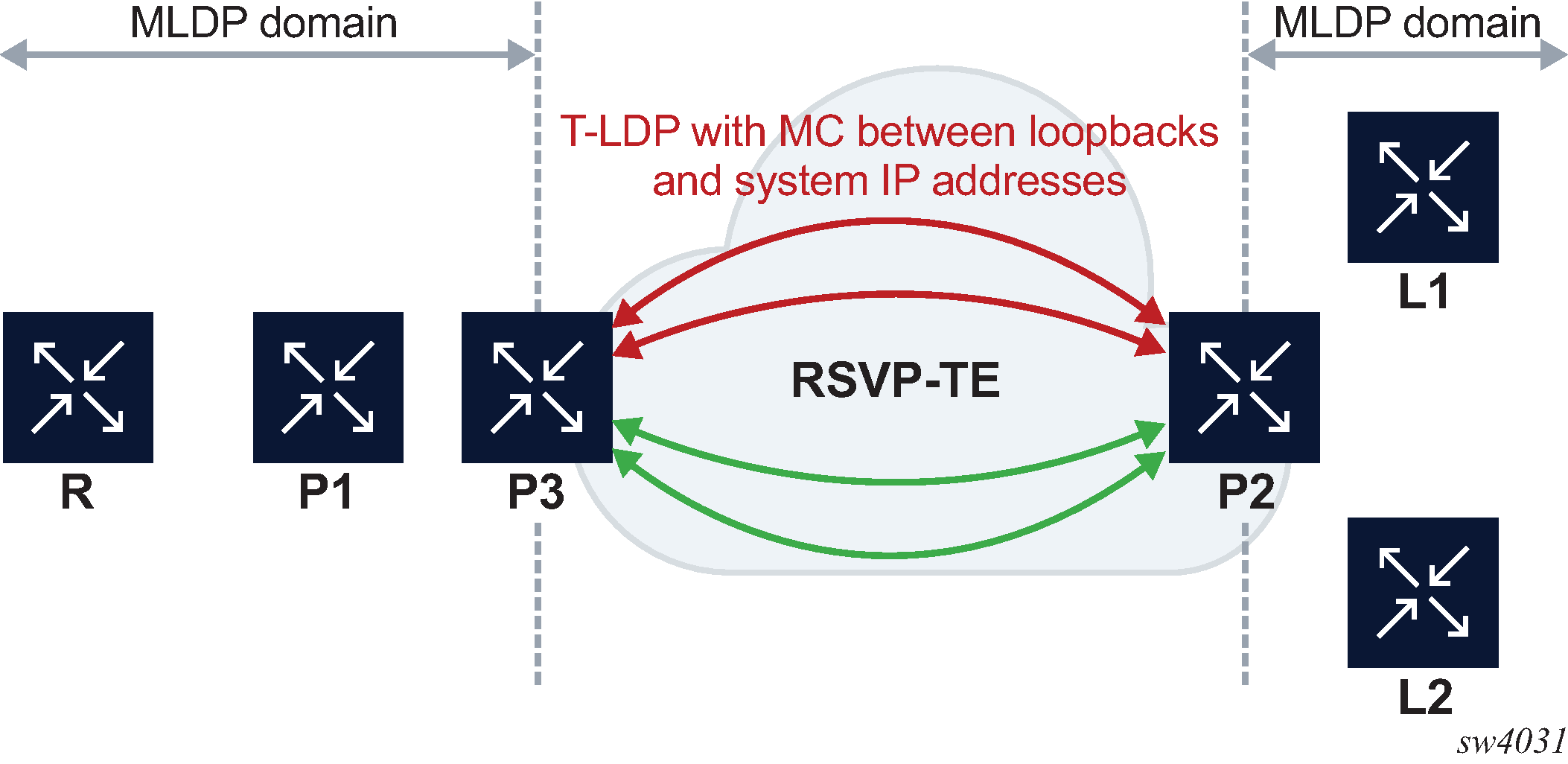

Figure 1 shows an example of multiple T-LDP sessions to the upstream node.
The T-LDP peer IP that resolves the root is preferred first. Otherwise, the T-LDP peer with the smallest peer address is preferred. There is no ECMP between multiple T-LDP sessions to the same node.
Figure 1. Single upstream node with multiple T-LDP to the upstream node
