Using the NISH client in 1:1 direct mode

In 1:1 direct mode, the NISH client connects directly to a single SR OS node and operates the MD-CLI from a local Linux workstation.

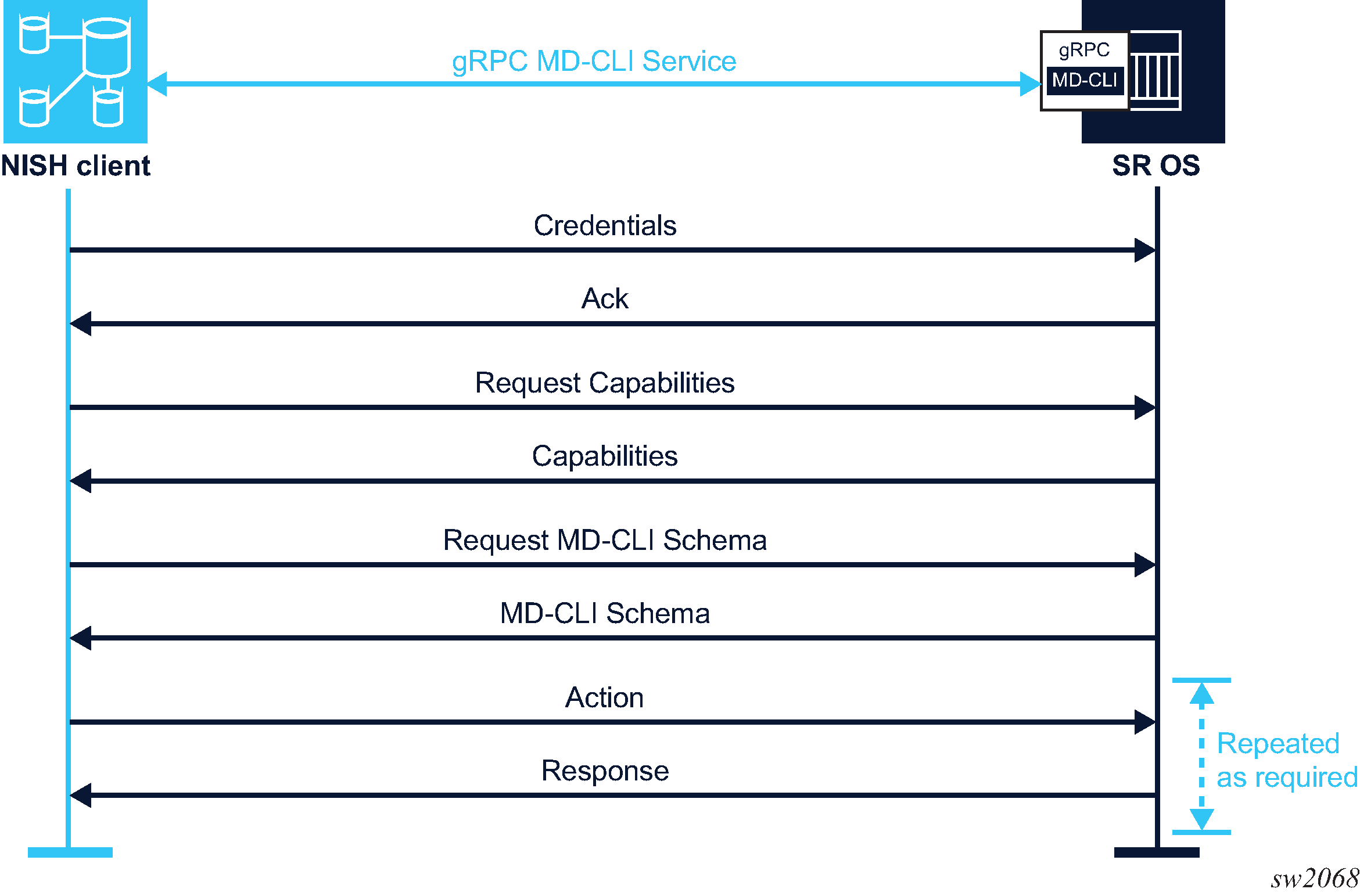

Figure 1 shows the communication for 1:1 direct mode.

Figure 1. Communication between the NISH client and the SR OS node

Review the following requirements before using the NISH client in 1:1 direct mode.

To use the NISH client in 1:1 direct mode, perform the following steps:

  1. Execute the nish command from the command line, providing a username, hostname (or IP address), and port number of the target SR OS node.

    nish [OPTIONS] [-l user] [-p port-number] [user]@hostname

    You can specify the user with the -l flag or --login-name option, together with the hostname in the format user@hostname, or in the $NISH_USER environment variable. If you do not specify a user with any of these options, the default $USER environment variable is used.

    The port number defines the target node TCP port. If it is not set, the default port 57400 is used. To specify a non-default port number use the -p flag or --port option.

    The hostname defines the target SR OS node. FQDN, hostname, IPv4 address, or IPv6 address formats are accepted. See Command options, for information about other command options.

    Example:

    [root@server ~]# nish admin@test1
    In this example:
    • The name of the SR OS node user who has the required permissions is admin.
    • The hostname of the node is test1.
    • 57400 is the default port and does not need to be specified explicitly.
    Note: If the user, target host, and target port are defined in environment variables or in a NISH rc file, and no other options are needed, the nish command can be used without these arguments.
  2. Enter the password for the SR OS node when prompted.
Parent topic: NISH client operation modes
