PXC LAG

PXC sub-ports can be aggregated into a PXC LAG for increased capacity and card redundancy.A logical concept of a PXC LAG is shown in Figure 1.

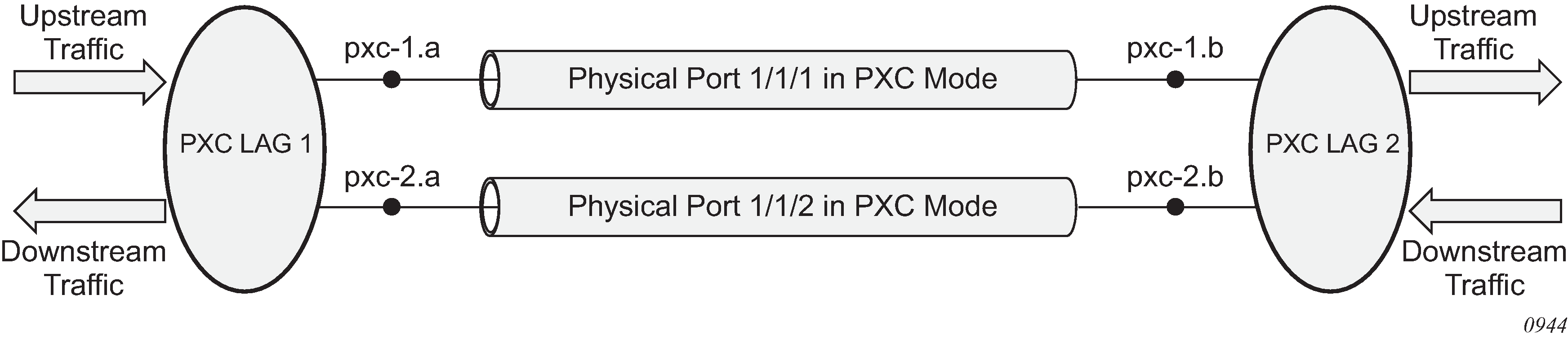

Figure 1. Logical Concept of a LAG on PXC Ports

Although the configuration allows for a mix of port-based PXCs and MAC-based PXCs in a LAG, the configuration should be used in a production network only during a short migration period when transitioning from one type of PXC to the other. Outside of the migration, the PXCs in a LAG should be of the same type, for example, a LAG should contain only port-based PXCs or only MAC-based PXCs but not both.

The LAGs on PXC ports must be configured in pairs as shown in this example:

MD-CLI

configure {
    lag 1 {
        description ‟lag in the up direction”
        port pxc-1.a {
        }
        port pxc-2.a {
        }
  }

    lag 2 {
        description ‟lag in the down direction”
        port pxc-1.b {
        }
        port pxc-2.b {
        }
    }
}

Within the router, the two sides of the PXC LAG (LAG 1 and LAG 2 in the example configuration) are not aware of their interconnection. As a result, the operational state of one side of the PXC LAG is not influenced by the state of the PXC LAG on the other side.

PXC sub-ports in a LAG must have the same properties (such as the same speed). Mixing PXC sub-ports and non-PXC ports is not allowed. The first port added to a LAG determines the type of LAG (PXC or non-PXC).

Statistics in the output of the show lag id statistics command represent combined traffic carried over the referenced lag id and its pair (lag 1 and lag 2 in the above example).
