Mapping the External PW to the PW-Port

Mapping between the external PW and the FPE based PW-port is performed via an Epipe of type vc-switching. The user configurable Epipe (id 5 in this example) aids in setting up steps 4, 5 and 6 in Figure 1:

  1. An internal PW is automatically added to the user configured Epipe 5

  2. A bind is created between the internal PW and the PW-port attached to PXC.

  3. External PW is switched to the internal PW.

At this stage, the external PW is mapped to the pw-port 1, as shown in Figure 1. The spoke-sdp 17000:1 and the binding under SDP 17001 (spoke-sdp 17001:100001) created in steps 4 and 5 (Figure 1) can be seen via show commands. However, they are not visible to the operator in the configure branch of CLI.

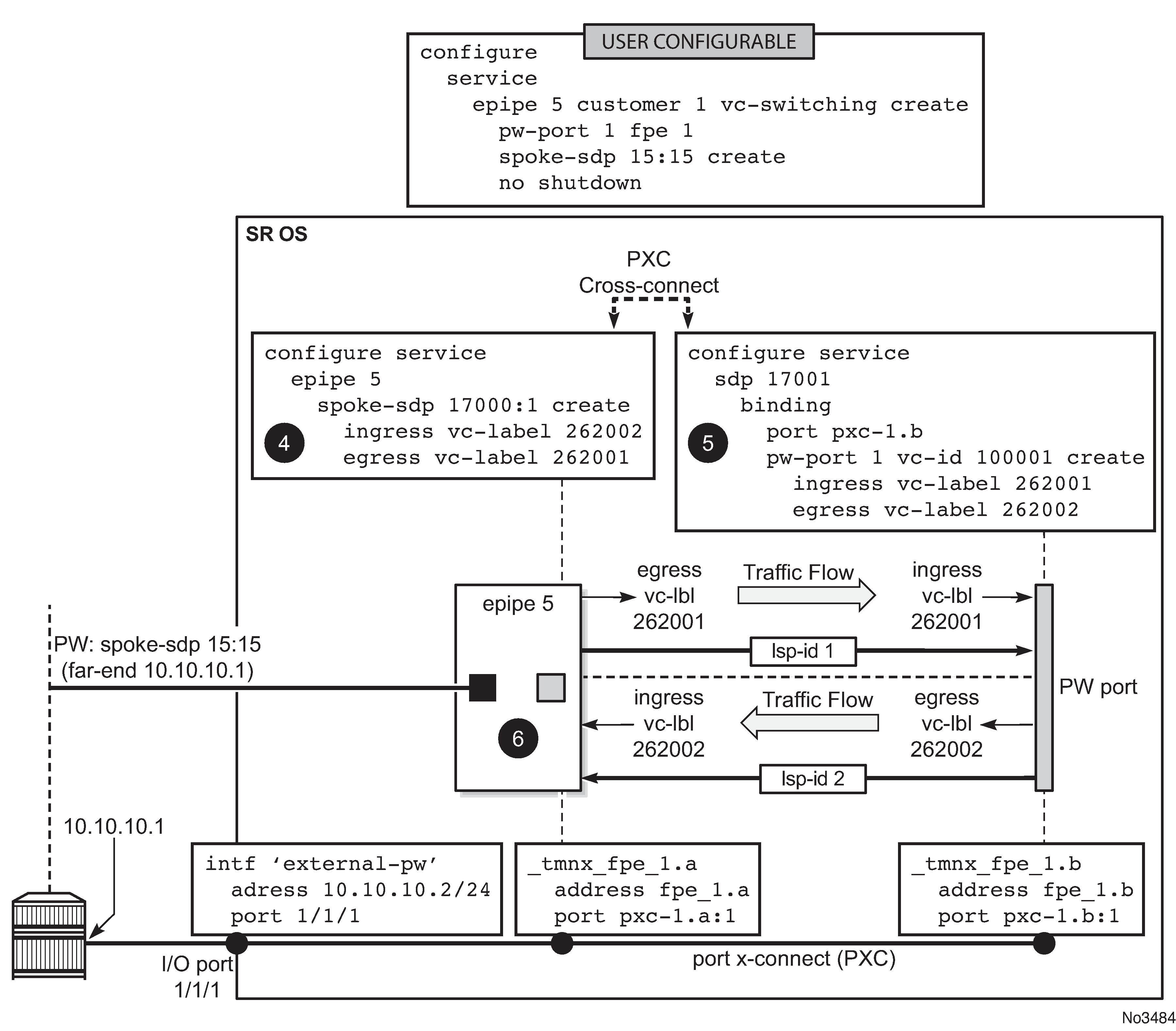

Figure 1. Mapping Between the External PW and the PXC Based PW-Port
