Figure: MPLS-TP provider edge and gateway, spoke SDP termination on VPLS and Figure: MPLS-TP provider edge and gateway, spoke SDP termination on IES/VPRN illustrate the model for spoke SDP termination on VPLS and IES/VPRN services, respectively. Similar to the VLL case, the static MPLS-TP PW may terminate on an interface belonging to the service on the router at the border between the MPLS-TP and IP/MPLS networks, or be switched to another PW segment to be terminated on a remote PE.

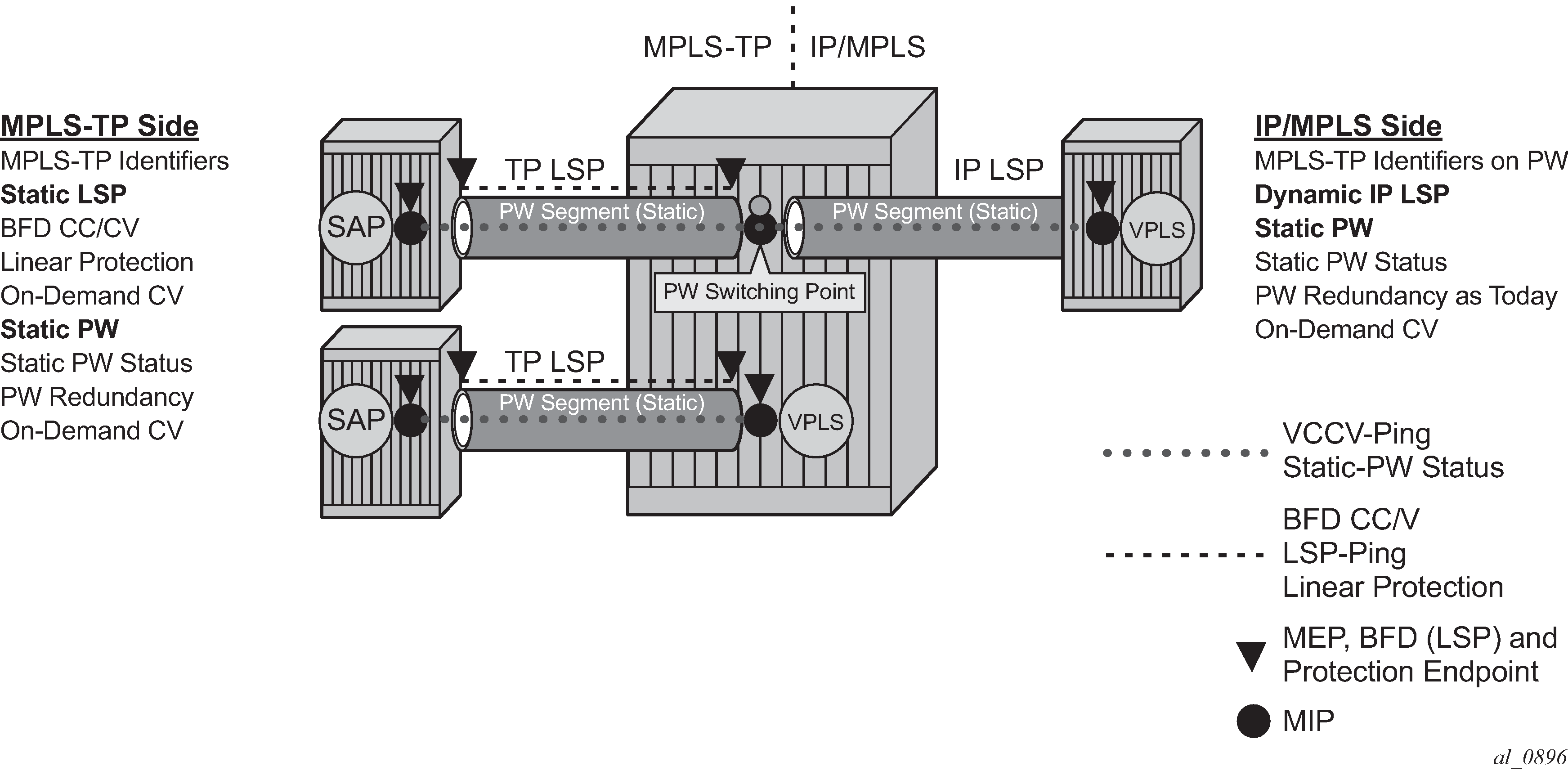

Figure: MPLS-TP provider edge and gateway, spoke SDP termination on VPLS
Figure: MPLS-TP provider edge and gateway, spoke SDP termination on IES/VPRN
