The HSQ supports a flexible buffer management configuration that allows both buffer isolation and buffer oversubscription for the queue buffer allocation. There are four levels to the buffer hierarchy with the total buffer allocation being divided into a system-reserved portion and a user-provisioned portion, as shown in Figure: HSQ buffer pool hierarchy.
root pools
mid pools
port class pools
queue group queues

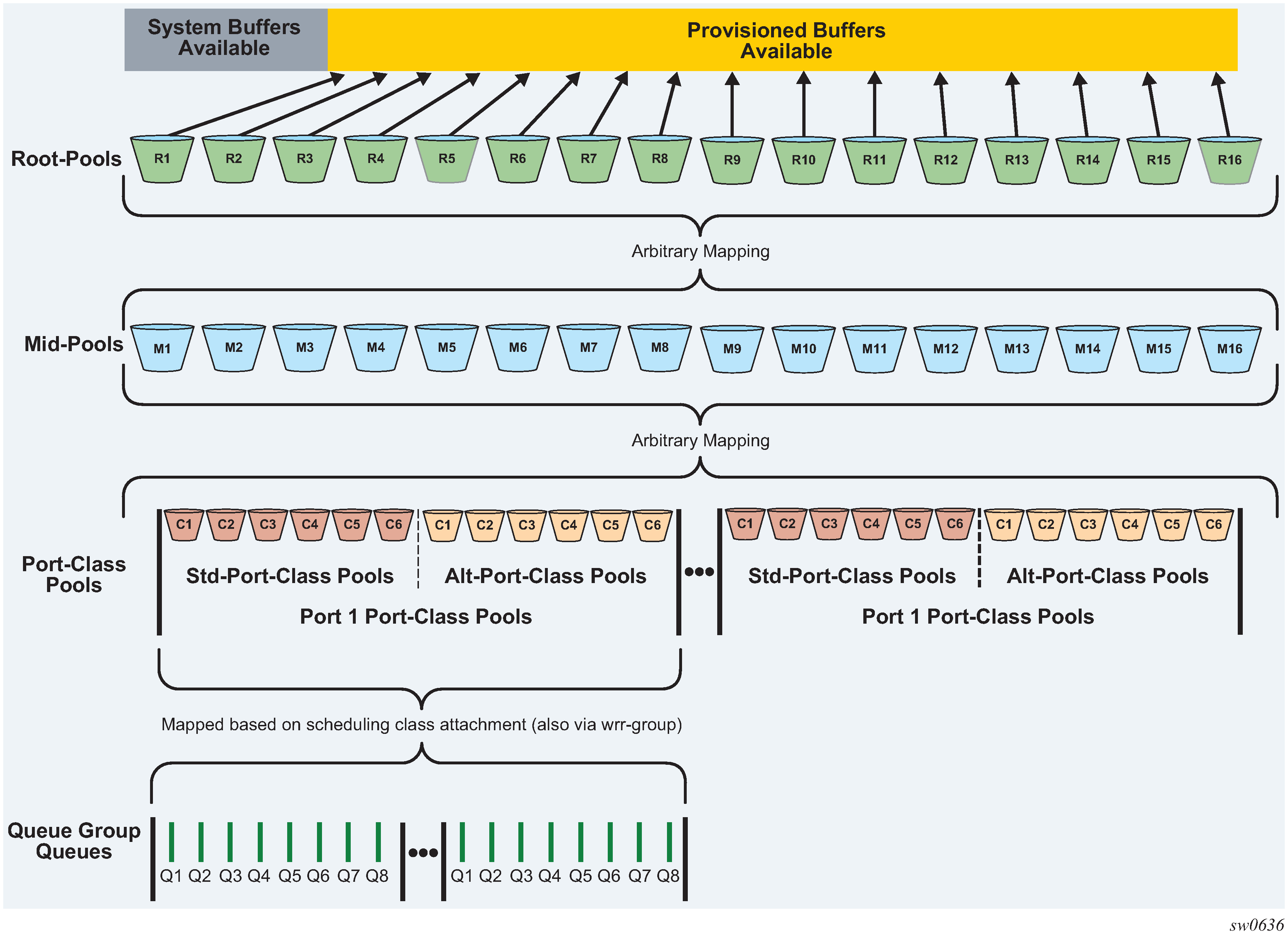

Figure: HSQ buffer pool hierarchy
