The HSQ egress shaping uses the following objects:
HSQ queue groups
An HSQ queue group comprises eight egress queues with two WRR groups. One HS queue group is allocated to each of the following:
an egress SAP
an egress network port
an egress access queue group instance
an egress network queue group instance
a subscriber egress (a single SLA profile instance in single HS SLA mode)
primary shapers
A primary shaper is allocated for each secondary shaper because it is required in the hierarchy. It does not perform any QoS control except when allocated for subscriber egress configured with multiple SLA profile instances in extended HS SLA mode.
secondary shapers
Secondary shapers provide an abstraction to be used for QoS control of traffic to a downstream device, such as an access node. Shaping can be performed on all traffic or on each scheduling class within the secondary shaper.
ports
The traffic forwarded to each port can be shaped. In addition, traffic in each scheduling class within a port can be shaped individually or within a single WRR group.
Six scheduling classes are supported across all the preceding objects.

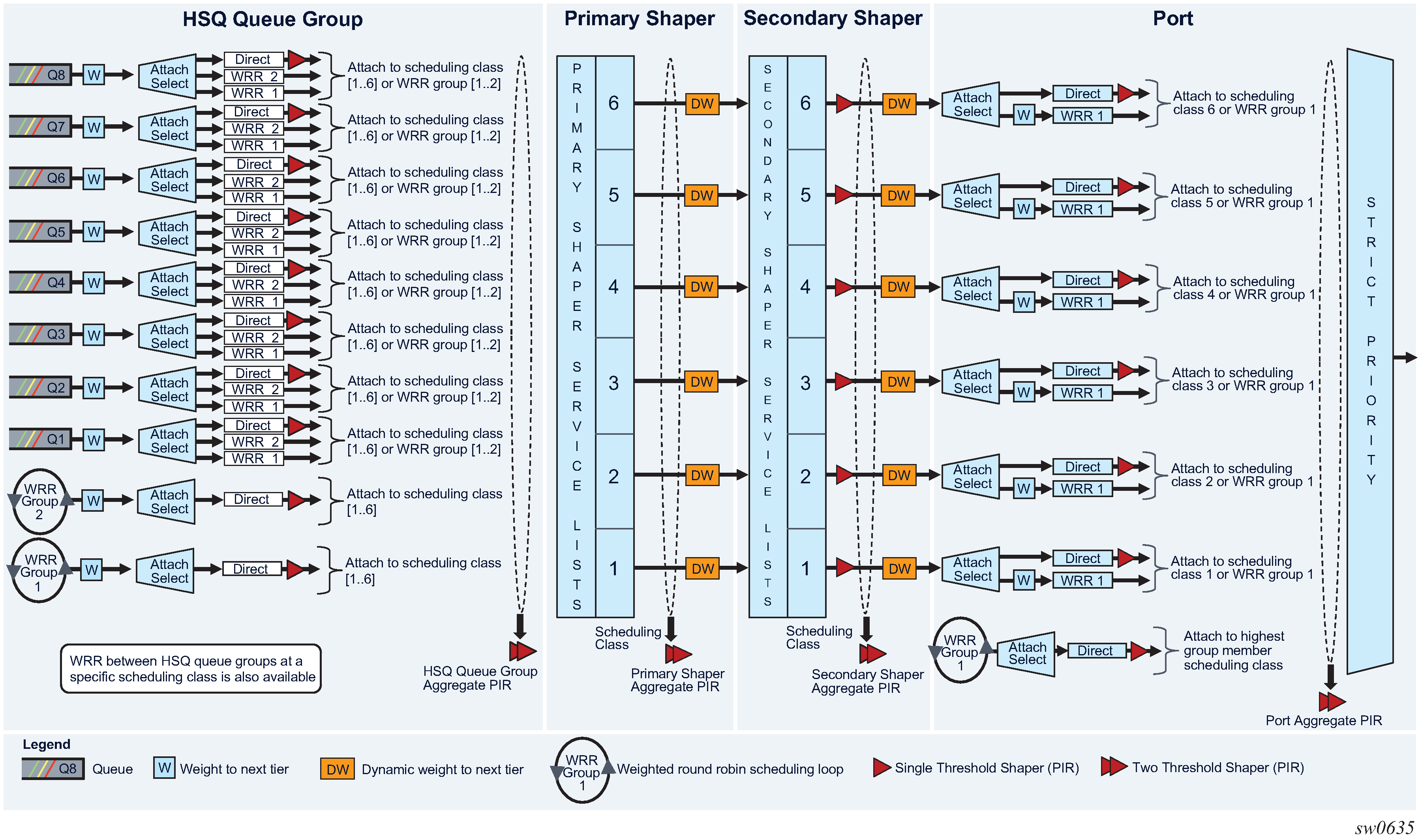

The egress QoS scheduling hierarchy is shown in Figure: Egress HSQ IOM scheduling hierarchy.
The available egress shaping encompasses:
per-queue or per-WRR group of queues
per-HSQ queue group aggregate
per-primary shaper aggregate
per-secondary shaper aggregate
per-secondary shaper per scheduling class
per-port aggregate
per-port per scheduling class
