Prerequisites

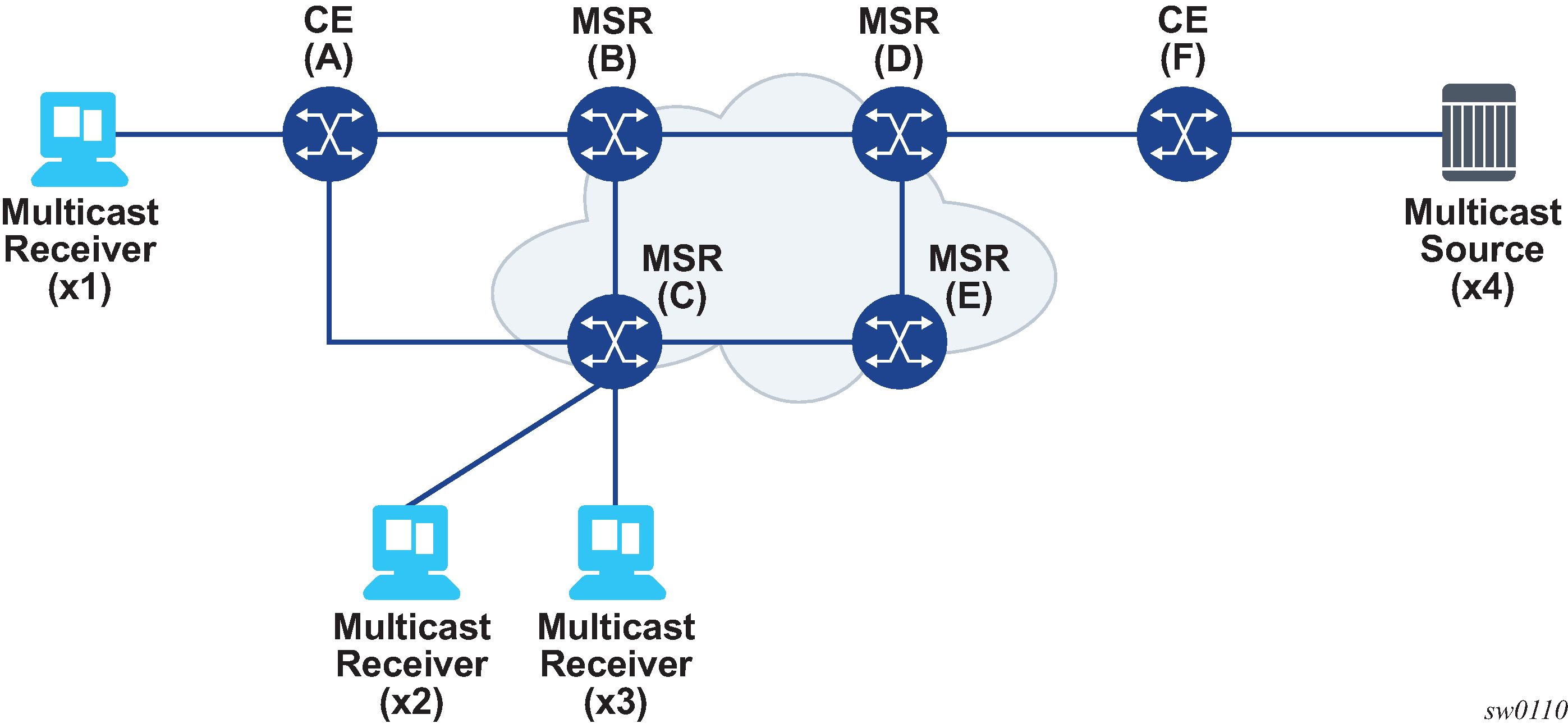

Figure: Example configuration shows an example GTM configuration.
Figure: Example configuration
where:
routers A and F are CE routers
routers B, C, D, and E are MSR routers in the core network
the multicast source is at x4
the multicast receivers are at x1, x2, and x3
Perform the following steps to configure GTM:
Procedure
-
Configure PIM parameters for GTM.
The following output displays the PIM configuration.
*B:Dut-D>config>router>pim# info ---------------------------------------------- interface "intf_to_B" shutdown exit interface "intf_to_E" shutdown exit apply-to all rp static address 10.100.1.1 group-prefix 224.0.0.0/4 exit exit bsr-candidate shutdown exit rp-candidate shutdown exit exit gtm auto-discovery default exit no mc-ecmp-balance no shutdown ---------------------------------------------- *B:Dut-D>config>router>pim# -
Configure the GTM parameters.
The following output displays the GTM configuration.
*B:Dut-D>config>router>gtm# info ---------------------------------------------- mvpn provider-tunnel inclusive rsvp lsp-template "IpmsiTmpl" no shutdown exit exit selective rsvp lsp-template "SpmsiTmpl" no shutdown exit maximum-p2mp-spmsi 4000 data-threshold 224.0.0.0/4 1 exit exit ---------------------------------------------- *B:Dut-D>config>router>gtm# -
Configure a route policy for BGP.
The following output displays the route policy configuration.
*B:Dut-D>config>router>policy-options# info ---------------------------------------------- prefix-list "sourceList" prefix 10.10.0.0/16 longer prefix 10.100.0.0/16 longer prefix 10.114.0.0/16 longer prefix 2001:db8:10:10:0:0/96 longer prefix 2001:db8:100:0:0/96 longer prefix 2001:db8:114:0:0/96 longer exit policy-statement "acceptAll" default-action accept exit exit policy-statement "acceptAllBgp" entry 10 from protocol rip exit action accept exit exit entry 11 from protocol ripng exit action accept exit exit default-action drop exit exit policy-statement "acceptAllPref8" default-action accept preference 8 exit exit ---------------------------------------------- *B:Dut-D>config>router>policy-options# -
Configure BGP parameters for GTM.
The following output displays the BGP configuration on router D.
*B:Dut-D#configure router bgp *B:Dut-D>config>router>bgp# info ---------------------------------------------- connect-retry 1 multipath 16 export "acceptAllBgp" router-id 10.20.1.4 rapid-withdrawal rapid-update mvpn-ipv4 mdt-safi mvpn-ipv6 mvpn-vrf-import-subtype-new best-path-selection ignore-nh-metric exit group "none" family ipv4 ipv6 mvpn-ipv4 mvpn-ipv6 label-ipv4 label-ipv6 next-hop-self local-address 10.20.1.4 neighbor 10.20.1.2 peer-as 200 exit neighbor 10.20.1.3 med-out 100 peer-as 200 exit neighbor 10.20.1.5 med-out 100 peer-as 200 exit exit no shutdown ----------------------------------------------The following output displays the MVPN context on router D.
*B:Dut-D# show router mvpn =============================================================================== MVPN Base configuration data =============================================================================== signaling : Bgp auto-discovery : Default UMH Selection : Highest-Ip SA withdrawn : Disabled intersite-shared : Enabled Persist SA : Disabled vrf-import : N/A vrf-export : N/A vrf-target : unicast C-Mcast Import RT : target:10.20.1.4:0 ipmsi : rsvp IpmsiTmpl i-pmsi P2MP AdmSt : Up i-pmsi Tunnel Name : IpmsiTmpl-gtm-73881 enable-bfd-root : false enable-bfd-leaf : false Mdt-type : sender-receiver BSR signalling : none Wildcard s-pmsi : Disabled Multistream-SPMSI : Disabled spmsi : rsvp SpmsiTmpl s-pmsi P2MP AdmSt : Up max-p2mp-spmsi : 4000 data-delay-interval: 3 seconds enable-asm-mdt : N/A data-threshold : 224.0.0.0/4 --> 1 kbps ===============================================================================The following output displays the PIM source group database information about router D.
*B:Dut-D#show router pim group =============================================================================== Legend: A = Active S = Standby =============================================================================== PIM Groups ipv4 =============================================================================== Group Address Type Spt Bit Inc Intf No.Oifs Source Address RP State Inc Intf(S) ------------------------------------------------------------------------------- 239.100.0.0 (S,G) spt vprn_itf_D_2b* 1 10.114.1.2 10.100.1.1 239.100.0.1 (S,G) spt vprn_itf_D_2b* 1 10.114.1.2 10.100.1.1 239.100.0.2 (S,G) spt vprn_itf_D_2b* 1 10.114.1.2 10.100.1.1 239.100.0.3 (S,G) spt vprn_itf_D_2b* 1 10.114.1.2 10.100.1.1 ------------------------------------------------------------------------------- Groups : 4 =============================================================================== * indicates that the corresponding row element may have been truncated. *B:Dut-D#show router pim group detail =============================================================================== PIM Source Group ipv4 =============================================================================== Group Address : 239.100.0.0 Source Address : 10.114.1.2 RP Address : 10.100.1.1 Advt Router : Flags : spt Type : (S,G) Mode : sparse MRIB Next Hop : 10.100.1.1 MRIB Src Flags : remote Keepalive Timer Exp: 0d 00:02:53 Up Time : 0d 00:09:50 Resolved By : rtable-u Up JP State : Joined Up JP Expiry : 0d 00:00:23 Up JP Rpt : Not Joined StarG Up JP Rpt Override : 0d 00:00:00 Register State : No Info Reg From Anycast RP: No Rpf Neighbor : 10.100.1.1 Incoming Intf : vprn_itf_D_2base Outgoing Intf List : mpls-if-73881 (mpls-if-73885) Curr Fwding Rate : 1.3 kbps Forwarded Packets : 132 Discarded Packets : 0 Forwarded Octets : 6072 RPF Mismatches : 0 Spt threshold : 0 kbps ECMP opt threshold : 7 Admin bandwidth : 1 kbps =============================================================================== PIM Source Group ipv4 =============================================================================== Group Address : 239.100.0.1 Source Address : 10.114.1.2 RP Address : 10.100.1.1 Advt Router : Flags : spt Type : (S,G) Mode : sparse MRIB Next Hop : 10.100.1.1 MRIB Src Flags : remote Keepalive Timer Exp: 0d 00:02:53 Up Time : 0d 00:09:50 Resolved By : rtable-u Up JP State : Joined Up JP Expiry : 0d 00:00:23 Up JP Rpt : Not Joined StarG Up JP Rpt Override : 0d 00:00:00 Register State : No Info Reg From Anycast RP: No Rpf Neighbor : 10.100.1.1 Incoming Intf : vprn_itf_D_2base Outgoing Intf List : mpls-if-73881 (mpls-if-73886) Curr Fwding Rate : 1.3 kbps Forwarded Packets : 141 Discarded Packets : 0 Forwarded Octets : 6486 RPF Mismatches : 0 Spt threshold : 0 kbps ECMP opt threshold : 7 Admin bandwidth : 1 kbps =============================================================================== PIM Source Group ipv4 =============================================================================== Group Address : 239.100.0.2 Source Address : 10.114.1.2 RP Address : 10.100.1.1 Advt Router : Flags : spt Type : (S,G) Mode : sparse MRIB Next Hop : 10.100.1.1 MRIB Src Flags : remote Keepalive Timer Exp: 0d 00:02:52 Up Time : 0d 00:09:51 Resolved By : rtable-u Up JP State : Joined Up JP Expiry : 0d 00:00:22 Up JP Rpt : Not Joined StarG Up JP Rpt Override : 0d 00:00:00 Register State : No Info Reg From Anycast RP: No Rpf Neighbor : 10.100.1.1 Incoming Intf : vprn_itf_D_2base Outgoing Intf List : mpls-if-73881 (mpls-if-73887) Curr Fwding Rate : 1.3 kbps Forwarded Packets : 140 Discarded Packets : 0 Forwarded Octets : 6440 RPF Mismatches : 0 Spt threshold : 0 kbps ECMP opt threshold : 7 Admin bandwidth : 1 kbps =============================================================================== PIM Source Group ipv4 =============================================================================== Group Address : 239.100.0.3 Source Address : 10.114.1.2 RP Address : 10.100.1.1 Advt Router : Flags : spt Type : (S,G) Mode : sparse MRIB Next Hop : 10.100.1.1 MRIB Src Flags : remote Keepalive Timer Exp: 0d 00:02:52 Up Time : 0d 00:09:51 Resolved By : rtable-u Up JP State : Joined Up JP Expiry : 0d 00:00:22 Up JP Rpt : Not Joined StarG Up JP Rpt Override : 0d 00:00:00 Register State : No Info Reg From Anycast RP: No Rpf Neighbor : 10.100.1.1 Incoming Intf : vprn_itf_D_2base Outgoing Intf List : mpls-if-73881 (mpls-if-73888) Curr Fwding Rate : 1.3 kbps Forwarded Packets : 140 Discarded Packets : 0 Forwarded Octets : 6440 RPF Mismatches : 0 Spt threshold : 0 kbps ECMP opt threshold : 7 Admin bandwidth : 1 kbps ------------------------------------------------------------------------------- Groups : 4 ===============================================================================The following output displays the PMSI information about router D.
*B:Dut-D# show router pim s-pmsi =============================================================================== PIM RSVP Spmsi tunnels =============================================================================== P2mp Tunnel ID Ext Tunnel Adrs SPMSI Index Num State Multistre ID VPN SGs am-ID ------------------------------------------------------------------------------- 1 61444 10.20.1.4 73885 1 Up 0 1 61445 10.20.1.4 73886 1 Up 0 1 61446 10.20.1.4 73887 1 Up 0 1 61447 10.20.1.4 73888 1 Up 0 =============================================================================== PIM RSVP Spmsi Interfaces : 4 =============================================================================== *B:Dut-D# show router pim s-pmsi detail =============================================================================== PIM RSVP Spmsi tunnels =============================================================================== P2MP ID : 1 Tunnel ID : 61444 Ext Tunnnel Addrs : 10.20.1.4 Spmsi IfIndex : 73885 Number of VPN SGs : 1 Up Time : 0d 00:00:09 VPN Group Address : 239.100.0.0 VPN Source Address : 10.114.1.2 Up Time : 0d 00:00:09 Multistream-Id : N/A State : TX Joined Mdt Threshold : 1 Join Timer : N/A Holddown Timer : 0d 00:00:50 =============================================================================== PIM RSVP Spmsi tunnels =============================================================================== P2MP ID : 1 Tunnel ID : 61445 Ext Tunnnel Addrs : 10.20.1.4 Spmsi IfIndex : 73886 Number of VPN SGs : 1 Up Time : 0d 00:00:09 VPN Group Address : 239.100.0.1 VPN Source Address : 100.114.1.2 Up Time : 0d 00:00:09 Multistream-Id : N/A State : TX Joined Mdt Threshold : 1 Join Timer : N/A Holddown Timer : 0d 00:00:50 =============================================================================== PIM RSVP Spmsi tunnels =============================================================================== P2MP ID : 1 Tunnel ID : 61446 Ext Tunnnel Addrs : 10.20.1.4 Spmsi IfIndex : 73887 Number of VPN SGs : 1 Up Time : 0d 00:00:09 VPN Group Address : 239.100.0.2 VPN Source Address : 10.114.1.2 Up Time : 0d 00:00:09 Multistream-Id : N/A State : TX Joined Mdt Threshold : 1 Join Timer : N/A Holddown Timer : 0d 00:00:50 =============================================================================== PIM RSVP Spmsi tunnels =============================================================================== P2MP ID : 1 Tunnel ID : 61447 Ext Tunnnel Addrs : 10.20.1.4 Spmsi IfIndex : 73888 Number of VPN SGs : 1 Up Time : 0d 00:00:10 VPN Group Address : 239.100.0.3 VPN Source Address : 10.114.1.2 Up Time : 0d 00:00:10 Multistream-Id : N/A State : TX Joined Mdt Threshold : 1 Join Timer : N/A Holddown Timer : 0d 00:00:49 =============================================================================== PIM RSVP Spmsi Interfaces : 4 ===============================================================================*B:Dut-D# show router pim tunnel-interface =============================================================================== PIM Interfaces ipv4 =============================================================================== Interface Originator Address Adm Opr Transport Type ------------------------------------------------------------------------------- mpls-if-73881 10.20.1.4 Up Up Tx-IPMSI mpls-if-73882 10.20.1.3 Up Up Rx-IPMSI mpls-if-73883 10.20.1.2 Up Up Rx-IPMSI mpls-if-73884 10.20.1.5 Up Up Rx-IPMSI mpls-if-73885 10.20.1.4 Up Up Tx-SPMSI mpls-if-73886 10.20.1.4 Up Up Tx-SPMSI mpls-if-73887 10.20.1.4 Up Up Tx-SPMSI mpls-if-73888 10.20.1.4 Up Up Tx-SPMSI ------------------------------------------------------------------------------- Interfaces : 8 ===============================================================================
