L2TPv3 overview

Layer 2 Tunneling Protocol version 3 (L2TPv3) is a mechanism for the tunneling of Ethernet traffic over an IP network. For this application, the ISA functions as a resource module for the system, performing the L2TPv3 encapsulation and decapsulation functions.

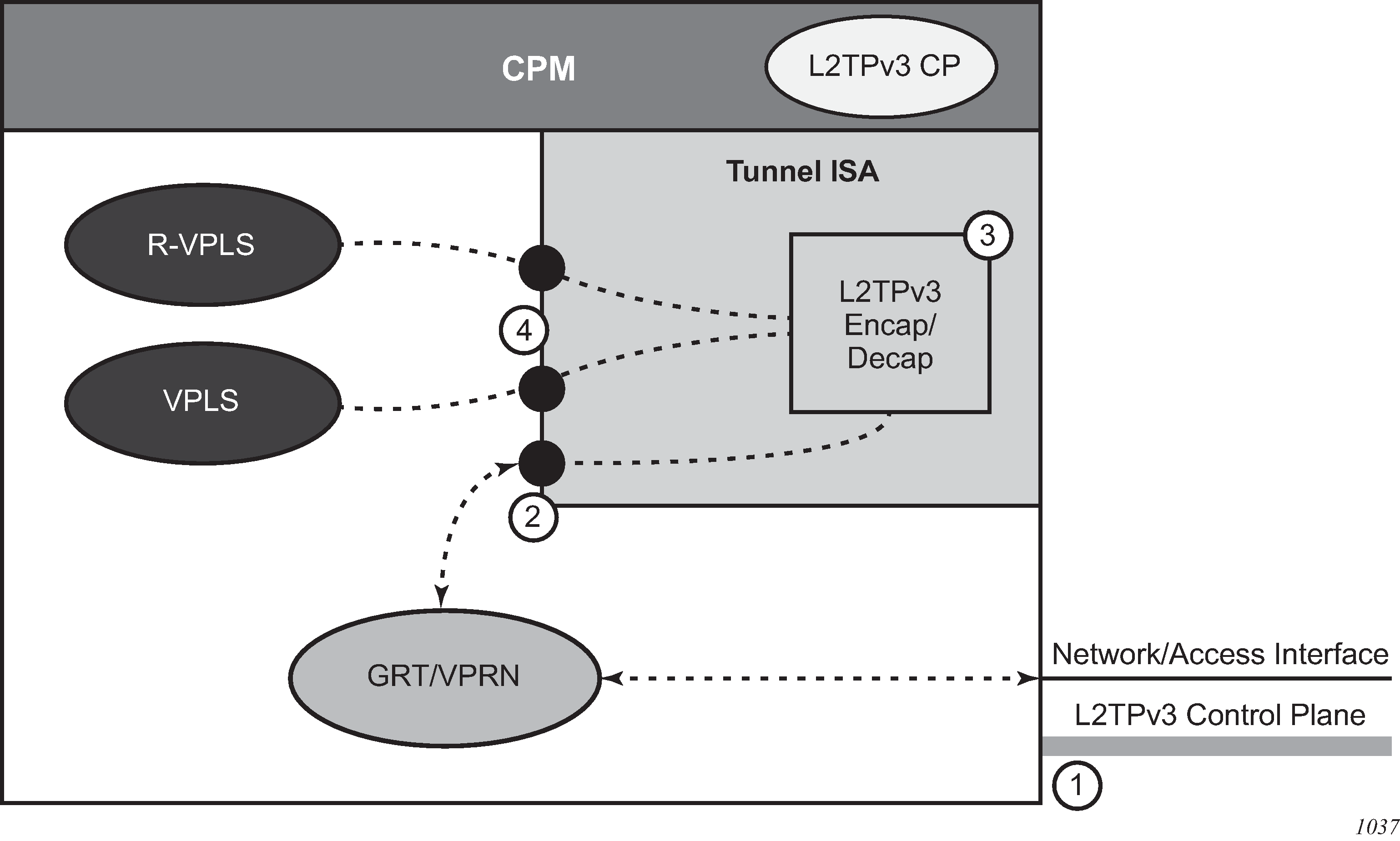

Figure: L2TPv3 support for IP transport shows L2TPv3 support for the IP transport model. Table: L2TPv3 support for IP transport — tunnel processing steps describes the tunnel processing steps in the figure.

Figure: L2TPv3 support for IP transport
Table: L2TPv3 support for IP transport — tunnel processing steps
Step number Description

1

The L2TPv3 control plane can run within either the base routing or VPRN contexts.

2

L2TPv3 encapsulated packets ingress and egress through the public interface, which can be in either the base routing or VPRN contexts.

3

L2TPv3 encapsulation and decapsulation processing is handled within the tunnel ISA.

4

Unencapsulated packets pass between the tunnel ISA and the associated service via the configured private SAP.
