The purpose policy-based forwarding is to capture traffic from a customer and perform a deep packet inspection (DPI) and forward traffic, if allowed, by the DPI.
In the following example, the split horizon groups are used to prevent flooding of traffic. Traffic from customers enter at SAP 1/1/5:5. Because mac-filter 100 that is applied on ingress, all traffic with dot1p 07 marking is forwarded to SAP 1/1/22:1, which is the DPI.
DPI performs packet inspection/modification and either drops the traffic or forwards the traffic back into the box through SAP 1/1/21:1. Traffic is then sent to spoke-sdp 3:5.
SAP 1/1/23:5 is configured to see if the VPLS service is flooding all the traffic. If flooding is performed by the router then traffic would also be sent to SAP 1/1/23:5 (which it should not).

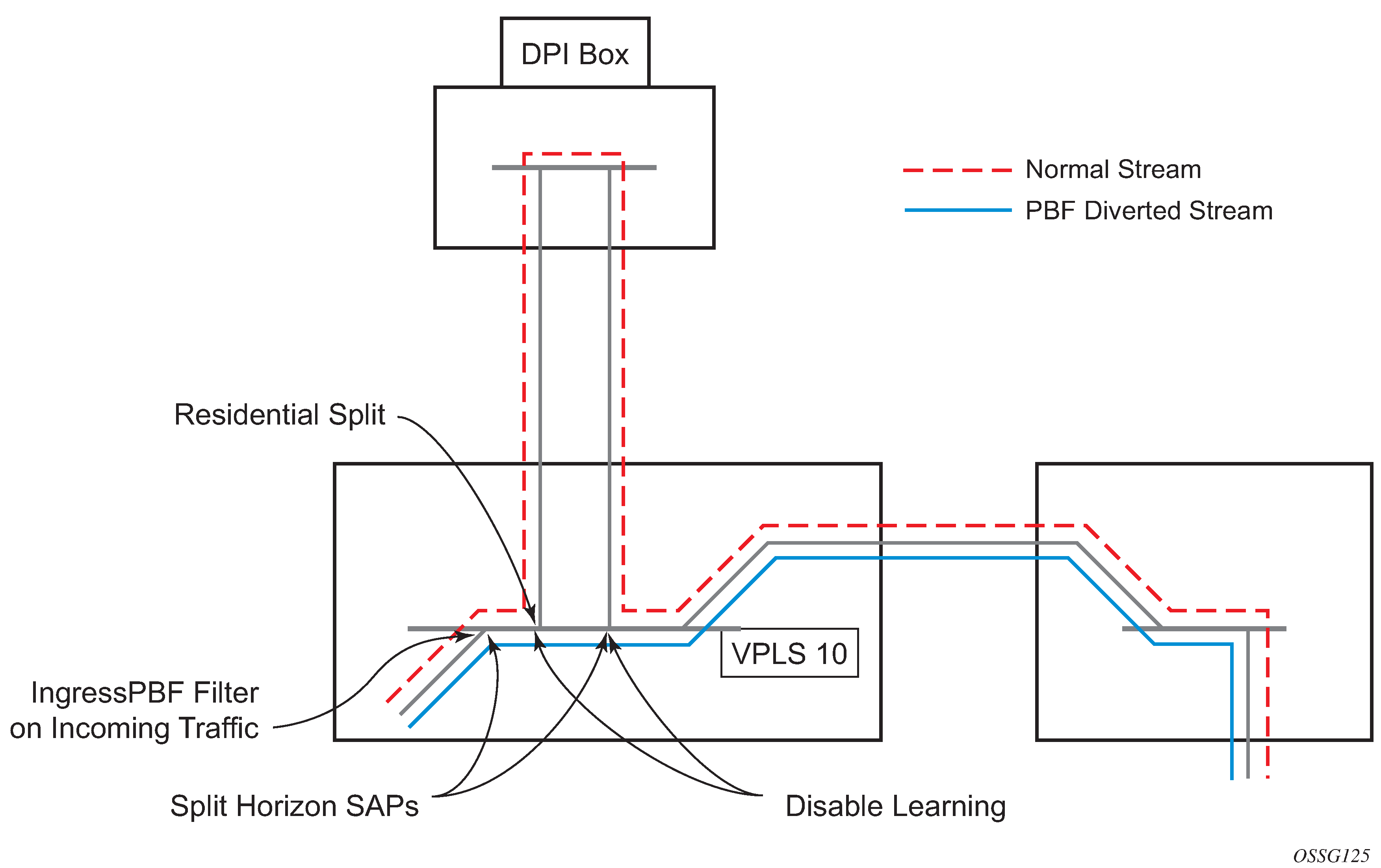

Figure: Policy-based forwarding for deep packet inspection shows an example to configure policy-based forwarding for deep packet inspection on a VPLS service. For information about configuring services, see the 7450 ESS, 7750 SR, 7950 XRS, and VSR Layer 2 Services and EVPN Guide: VLL, VPLS, PBB, and EVPN.
The following displays a VPLS service configuration with DPI example:
*A:ALA-48>config>service# info
----------------------------------------------
...
vpls 10 customer 1 create
service-mtu 1400
split-horizon-group "dpi" residential-group create
exit
split-horizon-group "split" create
exit
stp
shutdown
exit
sap 1/1/21:1 split-horizon-group "split" create
disable-learning
static-mac 00:00:00:31:11:01 create
exit
sap 1/1/22:1 split-horizon-group "dpi" create
disable-learning
static-mac 00:00:00:31:12:01 create
exit
sap 1/1/23:5 create
static-mac 00:00:00:31:13:05 create
exit
no shutdown
exit
...
----------------------------------------------
*A:ALA-48>config>service#
The following displays a MAC filter configuration example:
*A:ALA-48>config>filter# info
----------------------------------------------
...
mac-filter 100 create
default-action forward
entry 10 create
match
dot1p 7 7
exit
log 101
action forward sap 1/1/22:1
exit
exit
...
----------------------------------------------
*A:ALA-48>config>filter#
The following displays the MAC filter added to the VPLS service configuration:
*A:ALA-48>config>service# info
----------------------------------------------
...
vpls 10 customer 1 create
service-mtu 1400
split-horizon-group "dpi" residential-group create
exit
split-horizon-group "split" create
exit
stp
shutdown
exit
sap 1/1/5:5 split-horizon-group "split" create
ingress
filter mac 100
exit
static-mac 00:00:00:31:15:05 create
exit
sap 1/1/21:1 split-horizon-group "split" create
disable-learning
static-mac 00:00:00:31:11:01 create
exit
sap 1/1/22:1 split-horizon-group "dpi" create
disable-learning
static-mac 00:00:00:31:12:01 create
exit
sap 1/1/23:5 create
static-mac 00:00:00:31:13:05 create
exit
spoke-sdp 3:5 create
exit
no shutdown
exit
....
----------------------------------------------
*A:ALA-48>config>service#
