RADIUS Python interface

The SR OS RADIUS Python interface is used to interpret the parameters specified in the subscriber service-specific VSAs and to generate an internal proprietary format VSA representing the subscriber service instance to activate or deactivate, as shown in Figure: RADIUS Python interface.

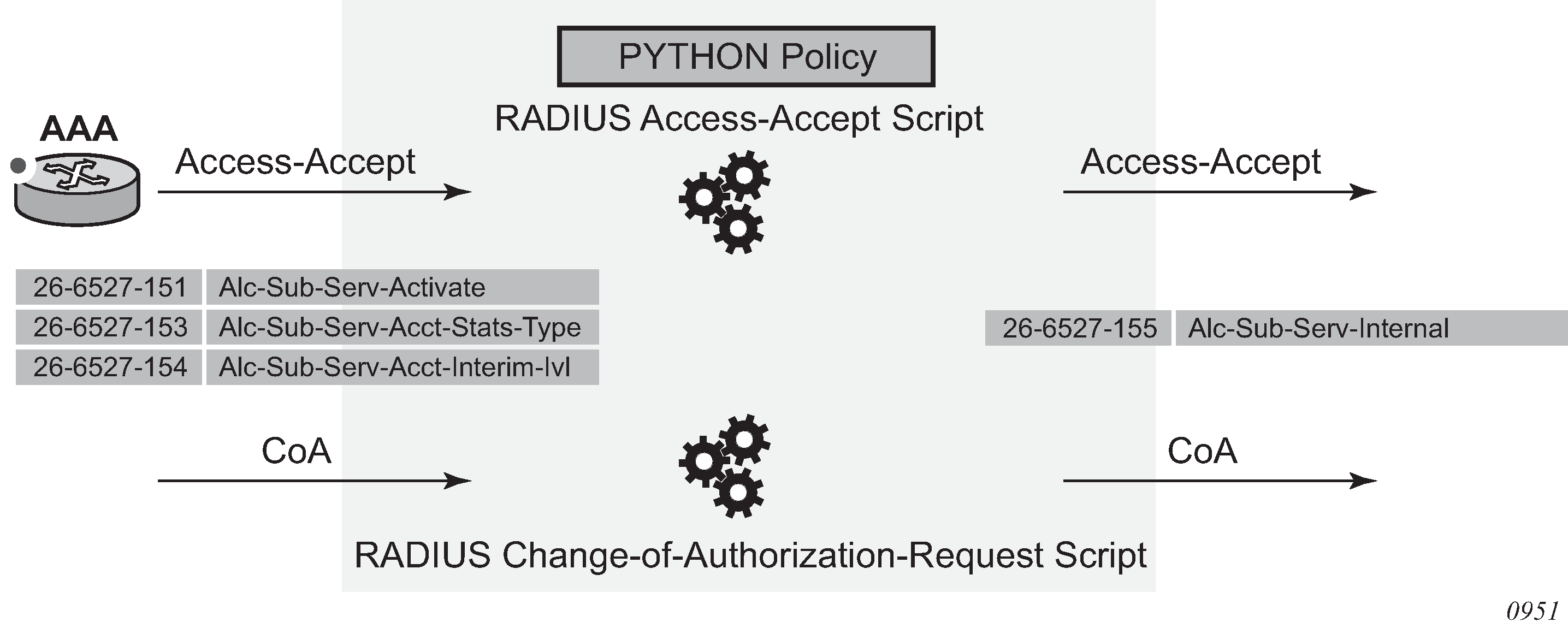

Figure: RADIUS Python interface

The SR OS only requires the Alc-Sub-Serv-Internal VSA [26-6527-155] to activate or deactivate the subscriber service. Subscriber service-specific VSAs [26-6527-151..154] are available to be used in the subscriber service Python script but are ignored in the SR OS.

See the Python script section for details on the subscriber services Python script functions and operation.

A Python script must be configured for RADIUS Access-Accept and CoA messages; for example:

config
    python
        python-script "subsvc-1" create
            primary-url "ftp://user:pwd@10.1.1.1/./py/subsvc-1.py"
            no shutdown
        exit
        python-policy "py-policy-subsvc-1" create
            radius access-accept direction ingress script "subsvc-1"
            radius change-of-authorization-request direction ingress script "subsvc-
1"
        exit
    exit

The Python policy must then be applied to the radius-server-policy to pass the Access-Accept messages to the Python script and to the RADIUS server to pass the CoA messages to the Python script. For example:

configure
    router
        radius-server
            server "server-1" address 10.1.1.2 secret <secret> create
                accept-coa
                python-policy "py-policy-subsvc-1"
            exit
        exit
    exit
    aaa
        radius-server-policy "aaa-server-policy-1" create
            python-policy "py-policy-subsvc-1"
            servers
                access-algorithm round-robin
                router "Base"
                server 1 name "server-1"
            exit
        exit
    exit
